1. Find and plot the magnitude, phase (in radians, in the range [-\pi, \pi]), and real and imaginary parts of the following complex signals s(t) for t \in [-2, 2]. (5 points each) (a) s(t) = 10e^{j4\pi t - 2t} (b) s(t) = e^{j\pi (t + \frac{1}{2})} + e^{-j\pi (t - \frac{1}{2})} (c) s(t) = 1 - e^{-j4\pi t} (d) s(t) = sin(\pi t) + j cos(\pi t)
Added by Regina C.
Close
Step 1
Define the complex signal st: st = 3e^(j2Ï€t) Show more…
Show all steps
Your feedback will help us improve your experience
Emily Anderson and 73 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find the magnitude and phase of the following complex exponential signal: X(e^(jw)) = 1 / (1 - a*e^(-jw)). Plot the magnitude and phase of the signal for both cases where a > 0 and a < 0.
Adi S.

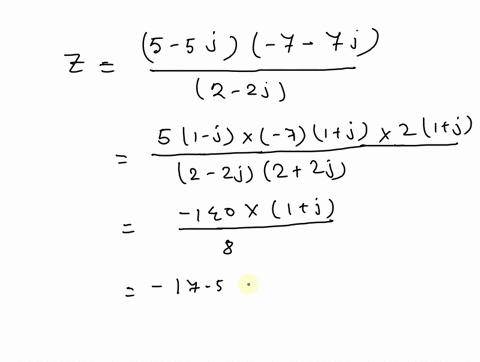

Find the result of the following complex expression as magnitude and phase (in degrees), as well as the real and imaginary components: (5-5j-7-7j) / (22j) Magnitude = 24 Phase (in radians) = 0.7854 Real Component = 0.5 Imaginary Component = 4
Supreeta N.
Write each complex number in trigonometric form, once using degrees and once using radians. In each case, begin by sketching the graph to help find the argument $\theta$. $5+5 i$
Complex Numbers and Polar Coordinates
Trigonometric Form for Complex Numbers
