00:01

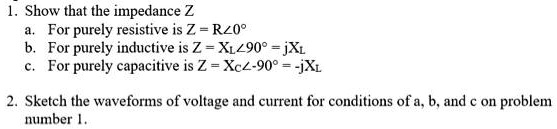

The representative activation for the first part of the equation, the general ac circuit which contains all elements r and c, this we would have for the z is equals to r plus j x l minus x c.
00:14
So, according to this for the a part, pure resistance, resistive circuit means x l is equals to 0 and x c is equals to 0.
00:24
So, then z is equals to r plus j multiplied by 0.
00:28
So, z is equals to r.
00:30
So, z would be equals to r.
00:32
Then for the b part of the equation, the only inductive circuit which means r l and x c will be 0.
00:40
So, then z is equals to 0 plus j x l minus 0.
00:45
So, this implies that j x l will be the value.
00:48
So, z would be equal to x l plus 90 degree and i l would be equal to v l v 0 divided by 2.
01:07
So, that is equal to v divided by x l minus 90...
