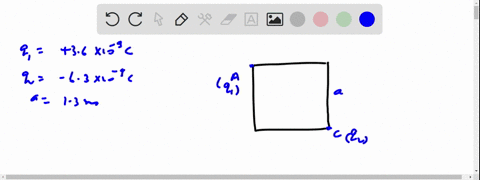

2. (15) Two point charges are placed at two corners of a square 0.15 m on a side (see figure). Take +x to the right and +y towards the top of the page. a) (2) Directly on the diagram, sketch the electric field vectors created by the two charges at point B. 2b) (2) Find the magnitude of the electric field at point B from $q_1$. 1c) (2) Find the magnitude of the electric field at point B from $q_2$ d) (2) Find the x and y components of the electric field at point B created by $q_1$. e) (1) Find the x and y components of the electric field at point B created by $q_2$. f) (2) Find the x and y components of the total electric field at point B. g) (2) Find the magnitude of the total electric field at point B. h) (2) If a charge $q_3 = 3.0 \times 10^{-6}$ C is placed at point B, what is the magnitude of the force acting on it? $q_1 = +1.5 \times 10^{-9} C$ $q_2 = -4.0 \times 10^{-9} C$

          2. (15) Two point charges are placed at two corners of a square
0.15 m on a side (see figure). Take +x to the right and +y towards
the top of the page.
a) (2) Directly on the diagram, sketch the electric field vectors
created by the two charges at point B.
2b) (2) Find the magnitude of the electric field at point B from $q_1$.
1c) (2) Find the magnitude of the electric field at point B from $q_2$
d) (2) Find the x and y components of the electric field at point B
created by $q_1$.
e) (1) Find the x and y components of the electric field at point B created by $q_2$.
f) (2) Find the x and y components of the total electric field at point B.
g) (2) Find the magnitude of the total electric field at point B.
h) (2) If a charge $q_3 = 3.0 \times 10^{-6}$ C is placed at point B, what is the magnitude of the force acting on it?
$q_1 = +1.5 \times 10^{-9} C$ $q_2 = -4.0 \times 10^{-9} C$
