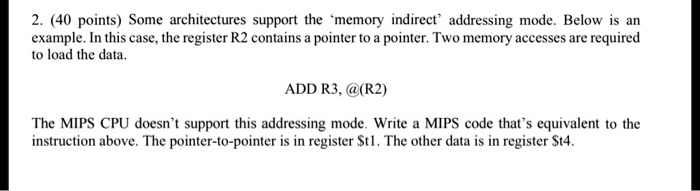

2. (40 points) Some architectures support the 'memory indirect' addressing mode. Below is an example. In this case, the register R2 contains a pointer to a pointer. Two memory accesses are required to load the data. ADD R3, @(R2) The MIPS CPU doesn't support this addressing mode. Write a MIPS code that's equivalent to the instruction above. The pointer-to-pointer is in register $t1. The other data is in register $t4.
Added by Juan Manuel J.
Close
Step 1
Load the data from register St4 into register R2. Show more…
Show all steps
