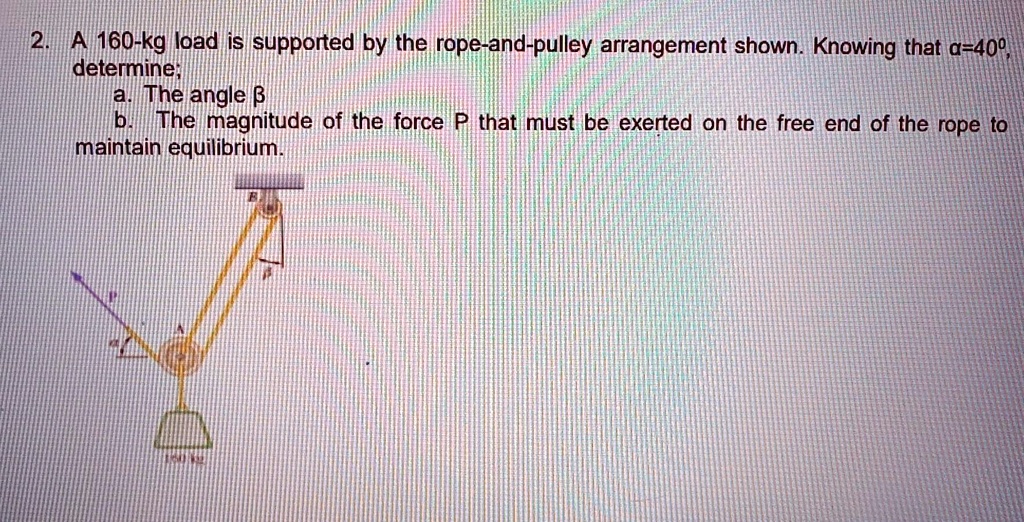

2. A 160-kg load is supported by the rope-and-pulley arrangement shown. Knowing that $alpha$=40°, determine; a. The angle $eta$ b. The magnitude of the force P that must be exerted on the free end of the rope to maintain equilibrium.
Added by Donna G.
Close
Step 1
- The weight of the load (W) is given by \( W = mg \), where \( m = 160 \, \text{kg} \) and \( g = 9.81 \, \text{m/s}^2 \). - Calculate \( W = 160 \times 9.81 = 1569.6 \, \text{N} \). Show more…
Show all steps
Your feedback will help us improve your experience
Mahendra Kumar and 78 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A m = 161-kg load is supported by the rope-and-pulley arrangement shown. Knowing that a α = 49°, determine the magnitude of the force P that must be exerted on the free end of the rope to maintain equilibrium
Sri K.
PROBLEM: A 600 N load is supported by rope-and-pulley arrangement as shown below. Determine the tension in the ropes and the magnitude of the force P that must be exerted on the free end of the rope to maintain equilibrium. (pulley system is frictionless)
Ethan D.
Two ropes are connected to a steel cable that supports a hanging weight as shown in Fig. 5.59 . (a) Draw a free-body diagram showing all of the forces acting ar the knot that connects the two ropes to the steel cable. Based on your force diagram, which of the two ropes will have the greater tension? (b) If the maximum tension either rope can sustain without breaking is 5000 $\mathrm{N}$ , determine the maximum value of the hanging weight that these ropes can safely support. You can ignore the weight of the ropes and the steel cable.
