2. A 200 lb traffic light supported by two cables hangs in equilibrium. As shown in the figure below, let the weight of the light be represented by \vec{w} and the forces on the two cables \vec{F_1} and \vec{F_2}. Find \vec{F_1}, \vec{F_2} and the magnitudes of \vec{F_1} and \vec{F_2}.
Added by Marta A.
Close
Step 1
Step 1: The traffic light is in equilibrium, so the net force acting on it is zero. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 52 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

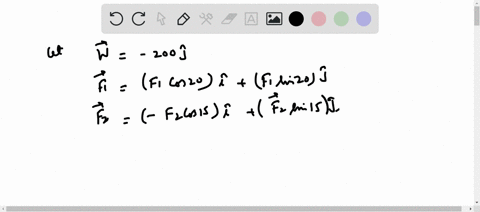

A 200-lb traffic light supported by two cables hangs in equilibrium. As shown in FIGURE $7.1 .19(b)$, let the weight of the light be represented by $\mathbf{w}$ and the forces in the two cables by $\mathbf{F}_{1}$ and $\mathbf{F}_{2}$. From Figure 7.1.19(c), we see that a condition of equilibrium is $$ \mathbf{w}+\mathbf{F}_{1}+\mathbf{F}_{2}=\mathbf{0} $$ See Problem 39. If $$ \begin{aligned} \mathbf{w} &=-200 \mathbf{j} \\ \mathbf{F}_{1} &=\left(\left\|\mathbf{F}_{1}\right\| \cos 20^{\circ}\right) \mathbf{i}+\left(\left\|\mathbf{F}_{1}\right\| \sin 20^{\circ}\right) \mathbf{j} \\ \mathbf{F}_{2} &=-\left(\left\|\mathbf{F}_{2}\right\| \cos 15^{\circ}\right) \mathbf{i}+\left(\left\|\mathbf{F}_{2}\right\| \sin 15^{\circ}\right) \mathbf{j} \end{aligned} $$ use $(7)$ to determine the magnitudes of $\mathbf{F}_{1}$ and $\mathbf{F}_{2}$. [Hint: Reread (iii) of Definition 7.1.1.]
Vectors
Vectors in 2-Space

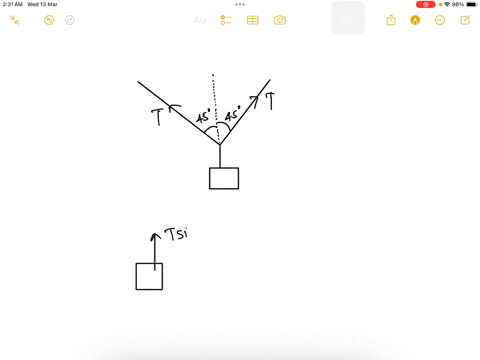

We have a traffic light hanging from two lightweight cables, each at a 45-degree angle from the vertical. The weight of the traffic light is denoted as (w). what is the tension in each cable
Nishant K.

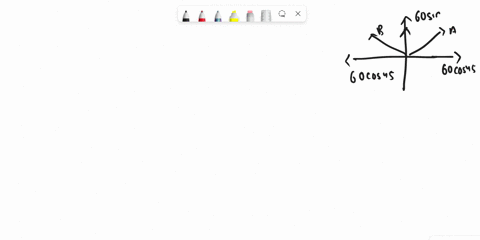

a. What is the resultant force exerted by the two cables supporting the traffic light in figure? (5 points) b. What is the weight of the light? (5 points) c. If a 20-N wind blows on the traffic light to the right, what are the new tensions in each cable if the angles do not change? (5 points) 45.0° 45.0° 60.0 N 60.0 N
Adi S.
