Question

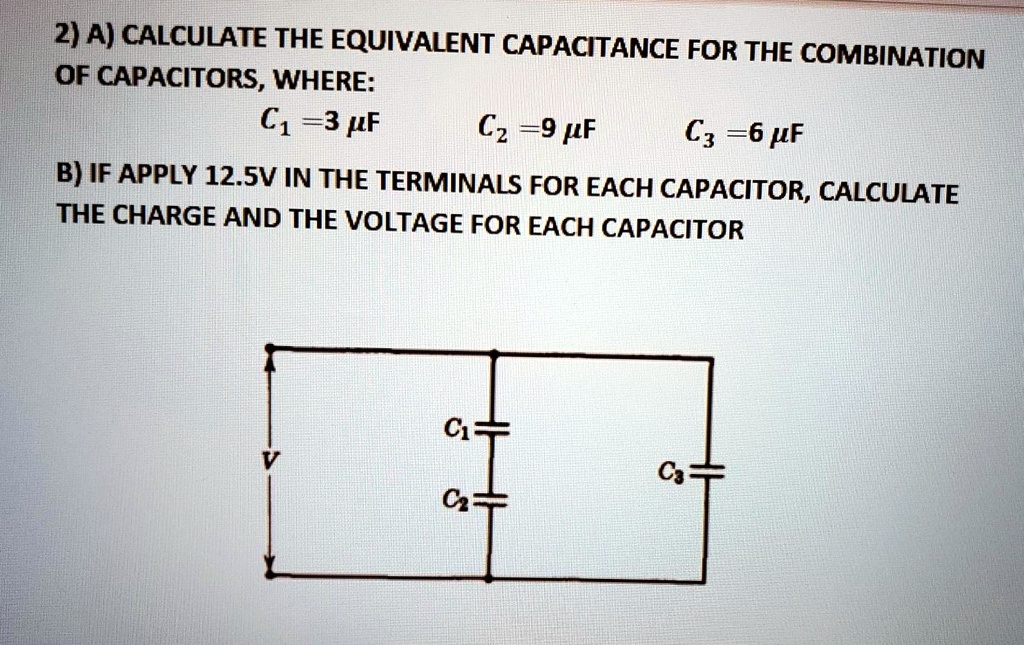

2) A) CALCULATE THE EQUIVALENT CAPACITANCE FOR THE COMBINATION OF CAPACITORS, WHERE: C1 = 3 µF C2 = 9 µF C3 = 6 µF B) IF APPLY 12.5V IN THE TERMINALS FOR EACH CAPACITOR, CALCULATE THE CHARGE AND THE VOLTAGE FOR EACH CAPACITOR

          2) A) CALCULATE THE EQUIVALENT CAPACITANCE FOR THE COMBINATION OF CAPACITORS, WHERE:
C1 = 3 µF C2 = 9 µF C3 = 6 µF
B) IF APPLY 12.5V IN THE TERMINALS FOR EACH CAPACITOR, CALCULATE THE CHARGE AND THE VOLTAGE FOR EACH CAPACITOR

Added by Christopher S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Suman K

06/25/2022

Step 1

Given: - C1 = 3 pF - C2 = 9 pF - C3 = 6 pF The equivalent capacitance for the series combination of C1 and C2 is given by: \[ C_{eq1} = \frac{C1 \times C2}{C1 + C2} \] Substitute the values: \[ C_{eq1} = \frac{3 \times 9}{3 + 9} = \frac{27}{12} = 2.25 \, Show more…

Show all steps
