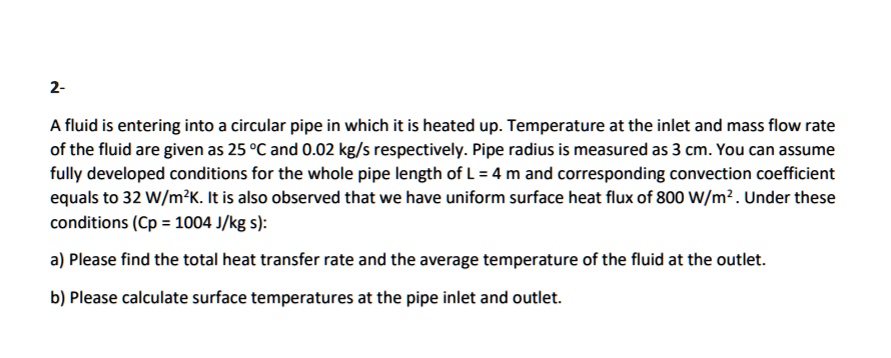

A fluid is entering into a circular pipe in which it is heated up. Temperature at the inlet and mass flow rate of the fluid are given as 25 °C and 0.02 kg/s respectively. Pipe radius is measured as 3 cm. You can assume fully developed conditions for the whole pipe length of L = 4 m and corresponding convection coefficient equals to 32 W/m²K. It is also observed that we have uniform surface heat flux of 800 W/m² . Under these conditions (Cp = 1004 J/kg s): a) Please find the total heat transfer rate and the average temperature of the fluid at the outlet. b) Please calculate surface temperatures at the pipe inlet and outlet.
Added by Raul S.
Close
Step 1
Calculate the temperature at the inlet: T_in = 25*C + 0.02*kg/s = 25.8*C Show more…
Show all steps
