2. A force applied parallel to an inclined plane is used to raise a load of \( 500 \mathrm{~N} \) through a height of \( 3.0 \mathrm{~m} \). The effort moved through a distance of \( 30 \mathrm{~m} \) along the plane. i) How much work is done on the load? ii) If the efficiency of the inclined plane is \( 80 \% \), determine the effort applied. iii) How much work is done by the effort?
Added by Bobby W.
Close
Step 1
0 m. So, Work = 500 N x 3.0 m = 1500 J Show more…
Show all steps
Your feedback will help us improve your experience
Emily Anderson and 99 other Microeconomics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The inclined plane depicted in long and rises $3.0$ m. ( $a$ ) What minimum force $F$ parallel to the plane is required to slide a 20 -kg box up the plane if friction is neglected? ( $b$ ) What is the IMA of the plane? ( $c$ ) Find the AMA and efficiency if a $64-\mathrm{N}$ force is actually required. (a) There are several ways to approach this. Let's consider energy. Since there is no friction, the work done by the pushing force, (F) $(15 \mathrm{~m})$, must equal the lifting work done, $(20 \mathrm{~kg})(9.81$ $\mathrm{m} / \mathrm{s}^{2}$ ) $(3.0 \mathrm{~m})$. Equating these two expressions and solving for $\mathrm{F}$ gives $F=39 \mathrm{~N}$ $(b)$ $\mathrm{IMA}=\frac{\text { Distance moved by } F}{\text { Distance } F_{w} \text { is lifted }}=\frac{15 \mathrm{~m}}{3.0 \mathrm{~m}}=5.0$ (c) $\mathrm{AMA}=$ Force ratio $=\frac{F_{W}}{F}=\frac{196 \mathrm{~N}}{64 \mathrm{~N}}=3.06=3.1$ Efficiency $=\frac{A M A}{I M A}=\frac{3.06}{5.0}=0.61=61 \%$ $\mathrm{O} r$, as a check. Efficiency $=\frac{\text { Work output }}{\text { Work input }}=\frac{\left(F_{W}\right)(3.0 \mathrm{~m})}{(F)(15 \mathrm{~m})}=0.61=61 \%$
An inclined plane is $10.0 \mathrm{~m}$ long and $2.50 \mathrm{~m}$ high. (a) Find its mechanical advantage. (b) A resistance of $727 \mathrm{~N}$ is pushed up the plane. What effort is needed? (c) An effort of $20 \overline{0} \mathrm{~N}$ is applied to push an $815-\mathrm{N}$ resistance up the inclined plane. Is the effort enough?
Simple Machines
The Inclined Plane

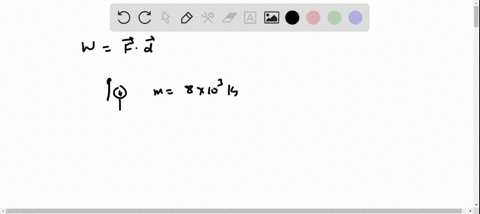

A plane designed for vertical takeoff has a mass of $8.0 \times 10^{3} \mathrm{kg}$. Find the net work done by all forces on the plane as it accelerates upward at $1.0 \mathrm{m} / \mathrm{s}^{2}$ through a distance of $30.0 \mathrm{m}$ after starting from rest. (See Sample Problem 5A.)
