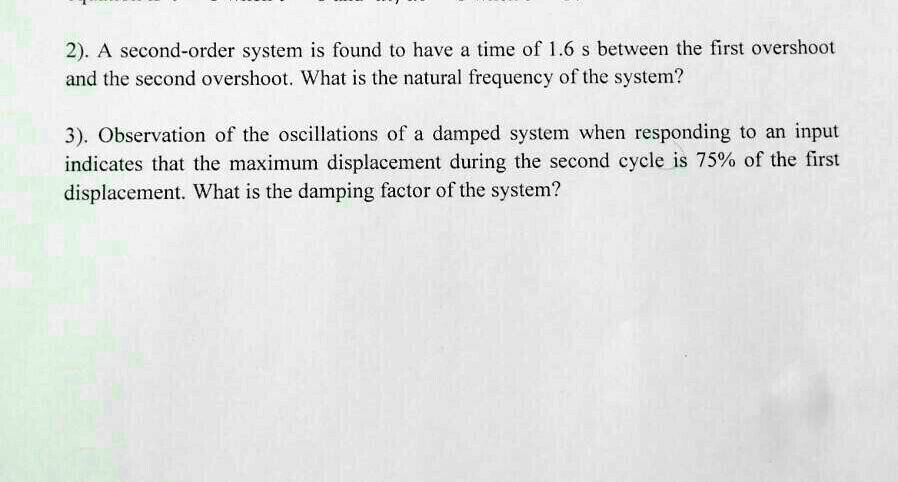

2). A second-order system is found to have a time of 1.6 s between the first overshoot and the second overshoot. What is the natural frequency of the system? 3). Observation of the oscillations of a damped system when responding to an input indicates that the maximum displacement during the second cycle is 75% of the first displacement. What is the damping factor of the system?
Added by Erica A.
Close
Step 1
For Question 2: - Time between the first overshoot and the second overshoot (\(T_d\)) = 1.6 seconds. For Question 3: - Maximum displacement during the second cycle is 75% of the first displacement. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
2) Calculate the response of the damped spring and mass system under the specified loading conditions. Use the constant average acceleration method and a time increment, Δt, of 0.005 sec. Assume that the system is initially at rest. Calculate the response of the system for damping factors, c, equal to 0.05c_cr, 0.10c_cr, and 0.20c_cr. k = 375 lb/in. m = 0.15 lb-sec^2/in. Plot the displacement histories for each during the time interval between 0 and 0.8 sec. Discuss the influence of the damping factor on the maximum displacement.
Monisha S.
A second order system is given by the following transfer function, G(s). G(s) = Y(s) / R(s) = 90 / (s^2 + 30s + 225) i) Determine the natural frequency,Wn , the gain,K , and the damping ratio, Îľ . ii) Find the output,y(t) , if a unit step input,R(s) , is applied to the system.
Sri K.

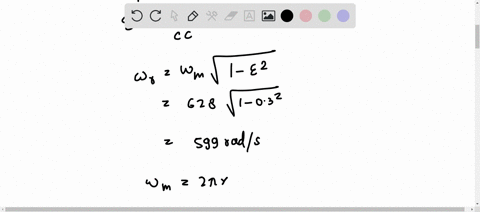

An under damped pressure transducer is used to measure a varying pressure at a frequency of 50 Hz and has a natural frequency of 100 Hz. Itis desired that the amplitude response of the transducer not exceed 5 percent. What damping ratio is necessary to achieve this response where the critical damping coefficient is 1.2? a) Second order system having a natural frequency of 100 Hz. For damping ratios c/cc of 0.3 and 0.4, determine the resonance frequencies. b) Determine the amplitude response and dynamic error for frequency of 50 and natural frequency at 150 Hz.its critical damping ratio is .8
Animesh R.
