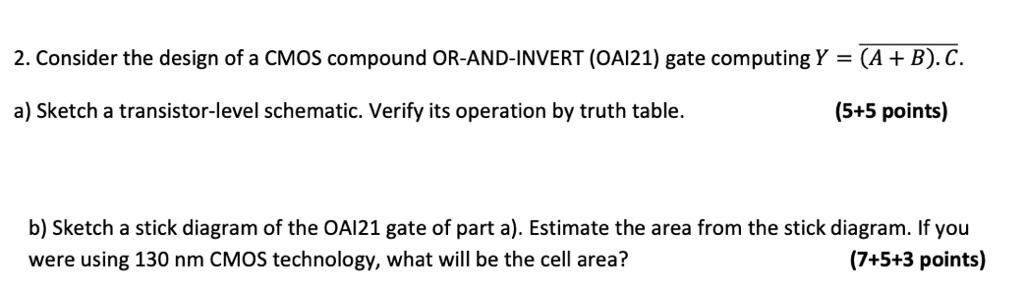

2. Consider the design of a CMOS compound OR-AND-INVERT (OAI21) gate computing Y = overline{(A + B) . C}. a) Sketch a transistor-level schematic. Verify its operation by truth table. (5+5 points) b) Sketch a stick diagram of the OAI21 gate of part a). Estimate the area from the stick diagram. If you were using 130 nm CMOS technology, what will be the cell area? (7+5+3 points)
Added by Justin F.
Close
Step 1
** The OAI21 gate computes the function Y = (A + B) · C. This means the output Y is high when either A or B is high and C is also high. It is an OR-AND-INVERT gate, meaning it first ORs A and B, then ANDs the result with C, and finally inverts the output. **Step Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 73 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
2. Implement the following Boolean expression using CMOS Transmission gate F = ABCD + ABCD + ABC + AD 3. Consider the logic function Z = A.C + D + D.B + C a. Realize the above Boolean function using CMOS transistors b. Obtain a common Euler path for both nMOS and pMOS transistors and hence draw the optimized stick diagram layout.
Adi S.
The simplified layout of a CMOS complex logic circuit is given in Fig. 1. a) Draw the corresponding circuit diagram and identify the complex logic function, b) Find equivalent CMOS inverter circuit (equivalent W/L for n and p-tree) for simultaneous switching of all inputs, assuming that (W/L)p = 20 for all PMOS transistors and (W/L)n = 10 for all NMOS transistors.
Consider the Boolean function of ABC + ABD + EF. Design in transistor level of CMOS logic gate based on the Boolean function above: Determine the Euler Path based on Q4(i). (iii) Draw the stick diagram of the circuit: Use the convention shown in Figure. metal poly active contact n-well Figure
