2. Determine the x- and y-coordinates of the centroid of the shaded area. Assume a = 2.1b, c = 1.8b, d = 1.9b, e = 1.7b, f = 2.4b, h = 2.5b. (b=1 cm)
Added by Heather H.
Close
Step 1
The shaded region can be divided into two rectangles and one triangle. Rectangle 1: width = $d + d + e = 1.9b + 1.9b + 1.7b = 5.5b$, height = $c = 1.8b$. Area = $5.5b \times 1.8b = 9.9b^2$ Rectangle 2: width = $f = 2.4b$, height = $a - c = 2.1b - 1.8b = 0.3b$. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 101 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

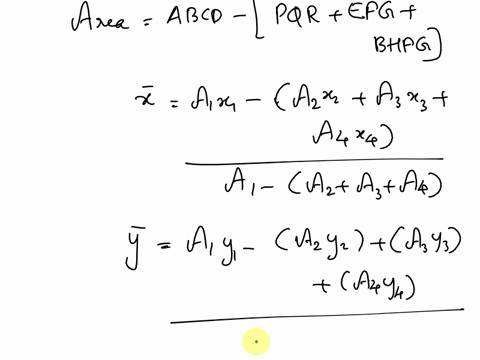

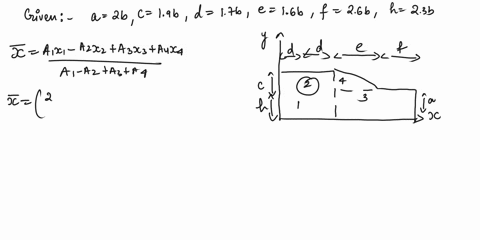

Determine the x- and y-coordinates of the centroid of the shaded area. Assume a = 2.0b, c = 1.9b, d = 1.7b, e = 1.6b, f = 2.6b, h = 2.3b. Answes: ̄x = ̄y =
Adi S.
Determine the x- and y-coordinates of the centroid of the shaded area. Assume a = 2.2b, c = 1.9b, d = 2b, e = 1.9b, f = 2.9b, h = 2.6b. y c h Answers: x = y =
Supreeta N.

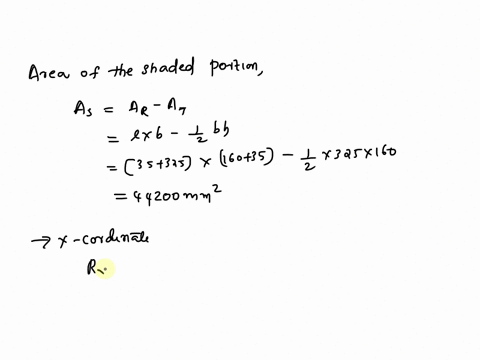

Determine the x- and y-coordinates of the centroid of the shaded area. Assume a = 35 mm, b = 325 mm, c = 160 mm.
