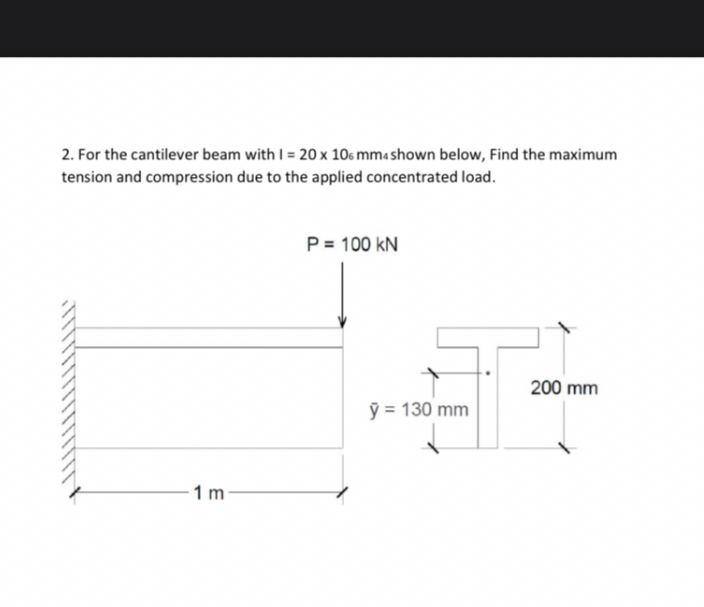

2. For the cantilever beam with \( \mathrm{I}=20 \times 10_{6} \mathrm{~mm}_{4} \) shown below, Find the maximum tension and compression due to the applied concentrated load.
