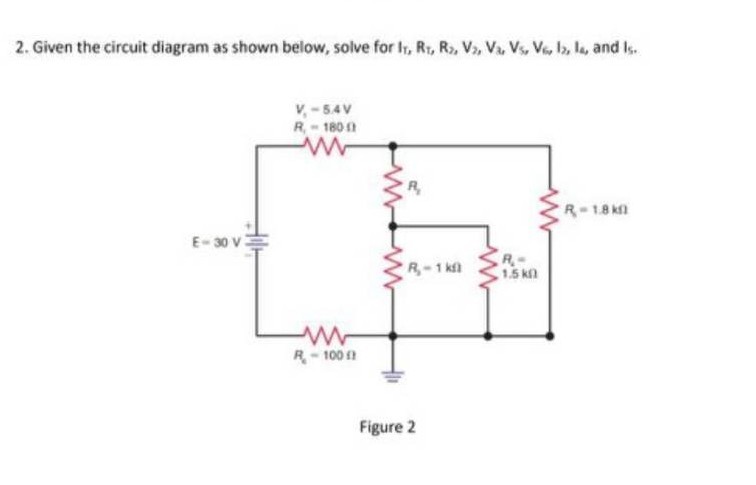

2. Given the circuit diagram as shown below, solve for \( I_{T}, R_{T}, R_{2}, V_{2}, V_{2}, V_{5}, V_{5,} I_{2}, I_{4} \), and \( I_{5} \). Figure 2

          2. Given the circuit diagram as shown below, solve for \( I_{T}, R_{T}, R_{2}, V_{2}, V_{2}, V_{5}, V_{5,} I_{2}, I_{4} \), and \( I_{5} \).
Figure 2

2. Given the circuit diagram as shown below, solve for IT, RT, R2, V2, V2, V5, V5, I2, I4, and I5.
Figure 2

Added by Wanda D.

University Physics

Samuel J. Ling, Jeff Sanny, William… 2nd Edition

Chapter 10
