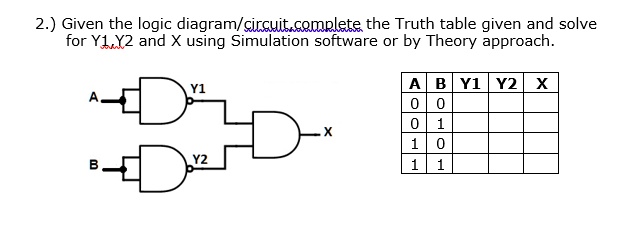

2.) Given the logic diagram/circuit complete the Truth table given and solve for Y1, Y2 and X us

Name: 2.) Given the logic diagram/circuit complete the Truth table given and solve for Y1, Y2 and X using Simulation software or by Theory approach. A B Y1 Y2 X 0 0 0 1 1 0 1 1
Uploaded: 2023-06-06T09:02:00-08:00
Duration: 1 min 33 s
Channel: Madhur L
Description: 2.) Given the logic diagram/circuit complete the Truth table given and solve for Y1, Y2 and X using Simulation software or by Theory approach. A B Y1 Y2 X 0 0 0 1 1 0 1 1

Question

Ryan Mcnamara · Accepted Answer

Unfortunately, I cannot see the logic diagram/circuit you are referring to. However, I can provi

Question

2.) Given the logic diagram/circuit complete the Truth table given and solve for Y1, Y2 and X using Simulation software or by Theory approach. A B Y1 Y2 X 0 0 0 1 1 0 1 1
