Question

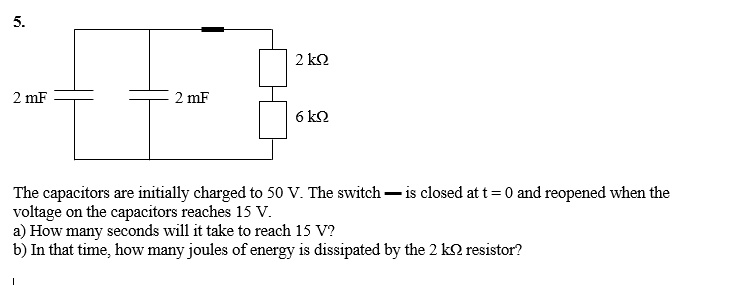

5. 2 k? 2 mF 2 mF 6 k? The capacitors are initially charged to 50 V. The switch is closed at t = 0 and reopened when the voltage on the capacitors reaches 15 V. a) How many seconds will it take to reach 15 V? b) In that time, how many joules of energy is dissipated by the 2 k? resistor?

          5.
2 k?
2 mF
2 mF
6 k?
The capacitors are initially charged to 50 V. The switch is closed at t = 0 and reopened when the voltage on the capacitors reaches 15 V.
a) How many seconds will it take to reach 15 V?
b) In that time, how many joules of energy is dissipated by the 2 k? resistor?

5.
2 k?
2 mF
2 mF
6 k?
The capacitors are initially charged to 50 V. The switch is closed at t = 0 and reopened when the voltage on the capacitors reaches 15 V.
a) How many seconds will it take to reach 15 V?
b) In that time, how many joules of energy is dissipated by the 2 k? resistor?

Added by Marie W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

09/11/2022

Step 1

Given: Initial voltage, \( V_0 = 50 \) V Final voltage, \( V = 15 \) V Equivalent capacitance, \( C_{eq} = 4 \) mF Equivalent resistance, \( R_{eq} = 8 \times 10^3 \) ohm Using the formula \( V = V_0 \times e^{-\frac{t}{R_{eq} \times C_{eq}}} \), we can solve for Show more…

Show all steps
