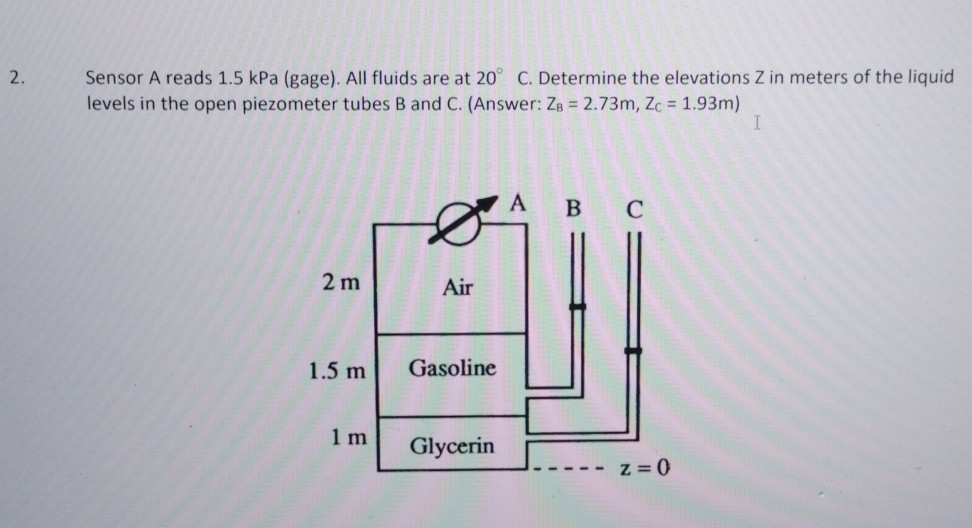

2. Sensor A reads 1.5 kPa (gage). All fluids are at \( 20^{\circ} \mathrm{C} \). Determine the elevations Z in meters of the liquid levels in the open piezometer tubes B and C. (Answer: \( Z_{B}=2.73 \mathrm{~m}, Z_{C}=1.93 \mathrm{~m} \) )
Added by Aaron M.
Close
Step 1
Sensor A reads 1.5 kPa (gage). The fluids are air, gasoline, and glycerin. The densities at \(20^{\circ} \mathrm{C}\) are approximately: - Air: negligible - Gasoline: \(680 \, \mathrm{kg/m^3}\) - Glycerin: \(1260 \, \mathrm{kg/m^3}\) Show more…
Show all steps
Your feedback will help us improve your experience
Ajay Singhal and 80 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In Fig. P2.11, pressure gage $A$ reads $1.5 \mathrm{kPa}$ (gage). The fluids are at $20^{\circ} \mathrm{C}$. Determine the elevations $z$, in meters, of the liquid levels in the open piezometer tubes $B$ and $C$.
3. In Fig. 2, pressure gage A reads 2.7 kPa (gage). The fluids are at 30°C. Determine the elevations z, in meters, of the liquid levels in the open piezometer tubes B and C. [2.5 mark] 4. In Fig. 3 the tank contains water and immiscible oil at 30°C. What is h in cm if the density of the oil is 928 kg/m3? [2.5 mark] 5. In Fig. 4 all fluids are at 25°C. Determine the pressure difference (Pa) between points A and B. [5 marks]
