2. The beam AB in the figure below supports a load which varies from an intensity of 50 lb-ft to 200 lb-ft. Calculate the magnitude and position of the resultant load. (Replace the given loading by a uniformly distributed load of 50 lb-ft plus a triangular load varying from zero at A to 150 lb-ft at B).
Added by Christina S.
Close
Step 1
We are asked to find the magnitude and position of the resultant load. The variable load can be broken down into a uniformly distributed load (UDL) of 50 lb/ft across the entire beam and a triangularly distributed load that increases from 0 at A to 150 lb/ft at B. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 78 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

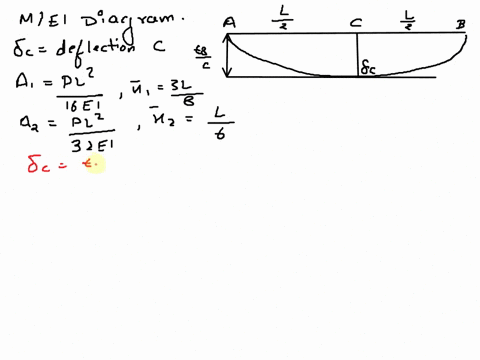

A simple beam $A B$ supports two concentrated loads $P$ at the positions shown in the figure. A support $C$ at the midpoint of the beam is positioned at distance $\bar{d}$ below the beam before the loads are applied. \[ \text { Assuming that } d=10 \mathrm{mm}, L=6 \mathrm{m}, E=200 \] $\mathrm{GPa},$ and $I=198 \times 10^{6} \mathrm{mm}^{4},$ calculate the magnitude of the loads $P$ so that the beam just touches the support at $C$.
