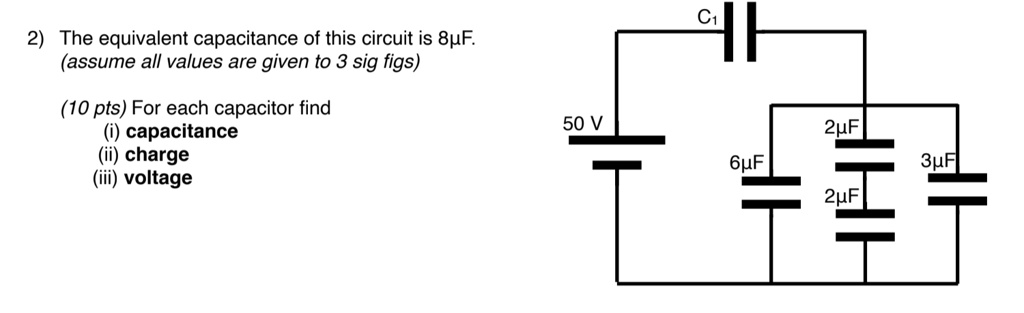

2) The equivalent capacitance of this circuit is 8µF. (assume all values are given to 3 sig figs) (10 pts) For each capacitor find (i) capacitance (ii) charge (iii) voltage C1 50 V 6µF 2µF 3µF 2µF
Added by Elizabeth J.
Close
Step 1
6V Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 70 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

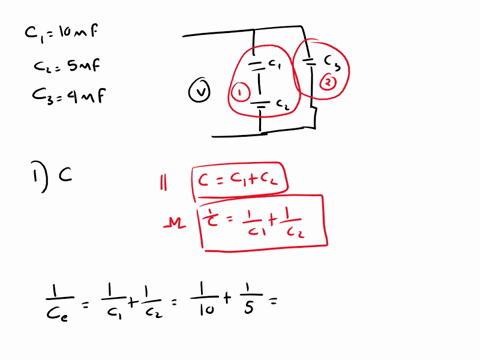

In this figure, C1 = 10.0 μF, C2 = 5.0 μF, C3 = 4.0 μF. (a) Find the equivalent capacitance of the combination. (b) If V = 12 V, calculate the voltage across each capacitor.
Madhur L.

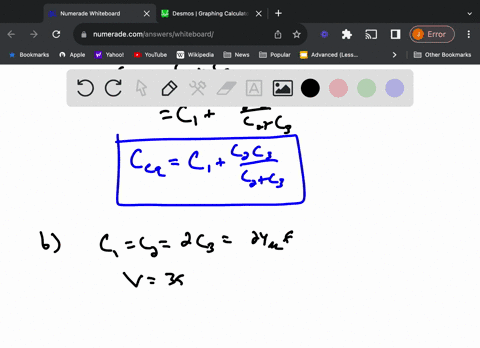

(a) Determine the equivalent capacitance of the circuit shown in Fig. 24-27. (b) If $C_{1}=C_{2}=2 C_{3}=24.0 \mu \mathrm{F}$, how much charge is stored on each capacitor when $V=35.0 \mathrm{~V} ?$
