5) (20 Points) Find the closed loop transfer function T(s) = (C(s))/(R(s)) for the system shown

Question

Amit Srivastava · Answer

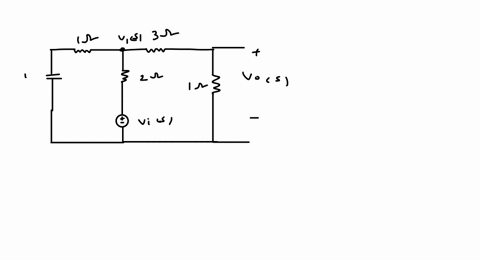

Find the transfer function V -0 by V -I of the RC circuit given in the figure. It is referring t

Narayan Hari · Answer

First drawing the circuit in Laplace domain, so just look at it carefully. After that, I will si

Arpit Gupta · Answer

In this problem of Laplace transform, we have given a figure of network. Let me show you first.

Arpit Gupta · Answer

In this problem of Laplace transform we have given a figure let me show you first. So this is th

Varsha Aggarwal · Answer

is given and we have to find 0 pole and pole and 0 diagram. So first part, finding 0, 0, numerat

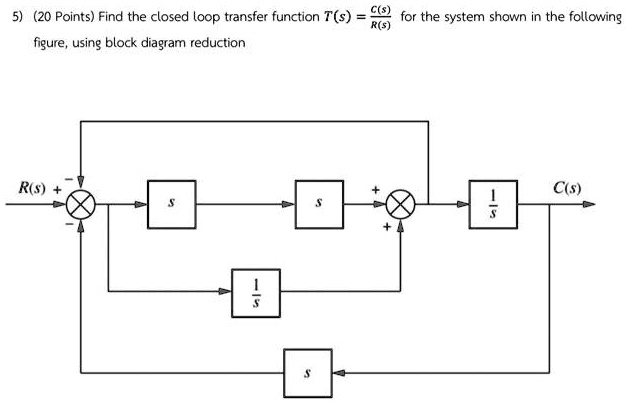

5) (20 Points) Find the closed loop transfer function $T(s) = \frac{C(s)}{R(s)}$ for the system shown in the following figure, using block diagram reduction
