200 load receives power from parallel-connected battery cells, as shown in the figure below: Determine the terminal voltage of the parallel-connected battery cells_ Ohm Ohm R_LOAD 20 Ohms V2 12 V 12 V
Added by Hunter M.
Step 1
To find the total voltage of parallel-connected battery cells, you simply take the average of the individual voltages. In this case, the individual voltages are 12V and 12V, so the total voltage would be (12V + 12V) / 2 = 12V. Show more…
Show all steps
Your feedback will help us improve your experience
Sikandar Baig and 88 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

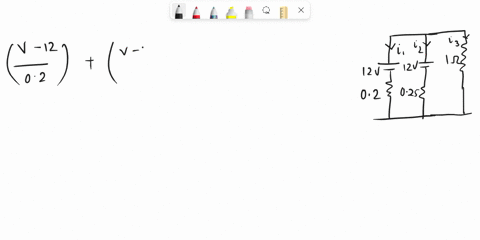

Two 12V batteries with internal resistances of 0.2 ohm and 0.25 ohm, respectively, are joined in parallel. A resistance of 1 ohm is placed across the terminals. Find the current supplied by each battery.
Adi S.
Two resistors have resistances R1 and R2. When the resistors are connected in series to a 12.0-V battery, the current from the battery is 2.00 A. When the resistors are connected in parallel to the battery, the total current from the battery is 9.00 A. Determine R1 and R2.
Sikandar B.
In the circuit shown in Fig. 26.71 the current through the $12.0-\mathrm{V}$ battery is measured to be 70.6 $\mathrm{mA}$ in the direction shown. What is the terminal voltage $V_{a b}$ of the $24.0-\mathrm{V}$ battery?
