[20/20/20/20] <5.5> The spin lock is the simplest synchronization mechanism possible on most commercial shared-memory machines. This spin lock relies on the exchange primitive to atomically load the old value and store a new value. The lock routine performs the exchange operation repeatedly until it finds the lock unlocked (i.e., the returned value is 0). addi x2, x0, #1 lockit: EXCH x2, 0(x1) bnez x2, lockit The lock is released simply by storing a 0 into x2. As discussed in Section 5.5, the more optimized spin lock employs cache coherence and uses a load to check the lock, allowing it to spin with a shared var- iable in the cache. lockit: ld x2, 0(x1) bnez x2, lockit addi x2, x0, #1 EXCH x2, 0(x1) bnez x2, lockit Assume that processor cores C0, C1, and C3 are all trying to acquire a lock at address 0xAC00 (i.e., register R1 holds the value 0xAC00). Assume the cache con- tents from Figure 5.37 and the timing parameters from Implementation 1 in Figure 5.38. For simplicity, assume the critical sections are 1000 cycles long. a. [20] <5.5> Using the simple spin lock, determine approximately how many memory stall cycles each processor incurs before acquiring the lock. b. [20] <5.5> Using the optimized spin lock, determine approximately how many memory stall cycles each processor incurs before acquiring the lock. c. [20] <5.5> Using the simple spin lock, approximately how many memory accesses occur? d. [20] <5.5> Using the optimized spin lock, approximately how many memory accesses occur? Figure 5.37 Multicore (point-to-point) multiprocessor. Parameter | Implementation 1 Cycles | Implementation 2 Cycles N_memory | 100 | 100 N_cache | 40 | 130 N_invalidate | 15 | 15 N_writeback | 10 | 10 Figure 5.38 Snooping coherence latencies.

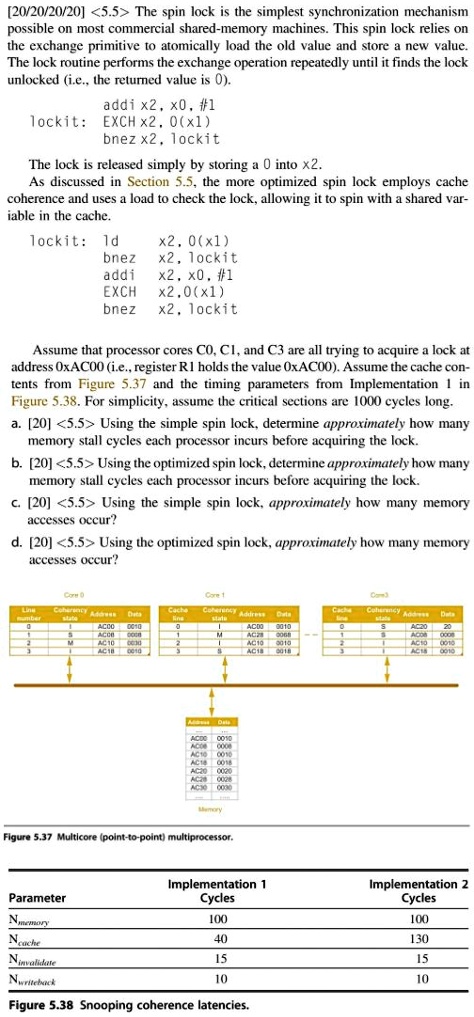

          [20/20/20/20] <5.5> The spin lock is the simplest synchronization mechanism
possible on most commercial shared-memory machines. This spin lock relies on
the exchange primitive to atomically load the old value and store a new value.
The lock routine performs the exchange operation repeatedly until it finds the lock
unlocked (i.e., the returned value is 0).

addi x2, x0, #1
lockit: EXCH x2, 0(x1)
bnez x2, lockit

The lock is released simply by storing a 0 into x2.
As discussed in Section 5.5, the more optimized spin lock employs cache
coherence and uses a load to check the lock, allowing it to spin with a shared var-
iable in the cache.

lockit: ld x2, 0(x1)
bnez x2, lockit
addi x2, x0, #1
EXCH x2, 0(x1)
bnez x2, lockit

Assume that processor cores C0, C1, and C3 are all trying to acquire a lock at
address 0xAC00 (i.e., register R1 holds the value 0xAC00). Assume the cache con-
tents from Figure 5.37 and the timing parameters from Implementation 1 in
Figure 5.38. For simplicity, assume the critical sections are 1000 cycles long.
a. [20] <5.5> Using the simple spin lock, determine approximately how many
memory stall cycles each processor incurs before acquiring the lock.
b. [20] <5.5> Using the optimized spin lock, determine approximately how many
memory stall cycles each processor incurs before acquiring the lock.
c. [20] <5.5> Using the simple spin lock, approximately how many memory
accesses occur?
d. [20] <5.5> Using the optimized spin lock, approximately how many memory
accesses occur?

Figure 5.37 Multicore (point-to-point) multiprocessor.

Parameter | Implementation 1 Cycles | Implementation 2 Cycles
N_memory | 100 | 100
N_cache | 40 | 130
N_invalidate | 15 | 15
N_writeback | 10 | 10

Figure 5.38 Snooping coherence latencies.

[20/20/20/20] <5.5> The spin lock is the simplest synchronization mechanism
possible on most commercial shared-memory machines. This spin lock relies on
the exchange primitive to atomically load the old value and store a new value.
The lock routine performs the exchange operation repeatedly until it finds the lock
unlocked (i.e., the returned value is 0).

addi x2, x0, #1
lockit: EXCH x2, 0(x1)
bnez x2, lockit

The lock is released simply by storing a 0 into x2.
As discussed in Section 5.5, the more optimized spin lock employs cache
coherence and uses a load to check the lock, allowing it to spin with a shared var-
iable in the cache.

lockit: ld x2, 0(x1)
bnez x2, lockit
addi x2, x0, #1
EXCH x2, 0(x1)
bnez x2, lockit

Assume that processor cores C0, C1, and C3 are all trying to acquire a lock at
address 0xAC00 (i.e., register R1 holds the value 0xAC00). Assume the cache con-
tents from Figure 5.37 and the timing parameters from Implementation 1 in
Figure 5.38. For simplicity, assume the critical sections are 1000 cycles long.
a. [20] <5.5> Using the simple spin lock, determine approximately how many
memory stall cycles each processor incurs before acquiring the lock.
b. [20] <5.5> Using the optimized spin lock, determine approximately how many
memory stall cycles each processor incurs before acquiring the lock.
c. [20] <5.5> Using the simple spin lock, approximately how many memory
accesses occur?
d. [20] <5.5> Using the optimized spin lock, approximately how many memory
accesses occur?

Figure 5.37 Multicore (point-to-point) multiprocessor.

Parameter | Implementation 1 Cycles | Implementation 2 Cycles
Nmemory | 100 | 100
Ncache | 40 | 130
Ninvalidate | 15 | 15
Nwriteback | 10 | 10

Figure 5.38 Snooping coherence latencies.
