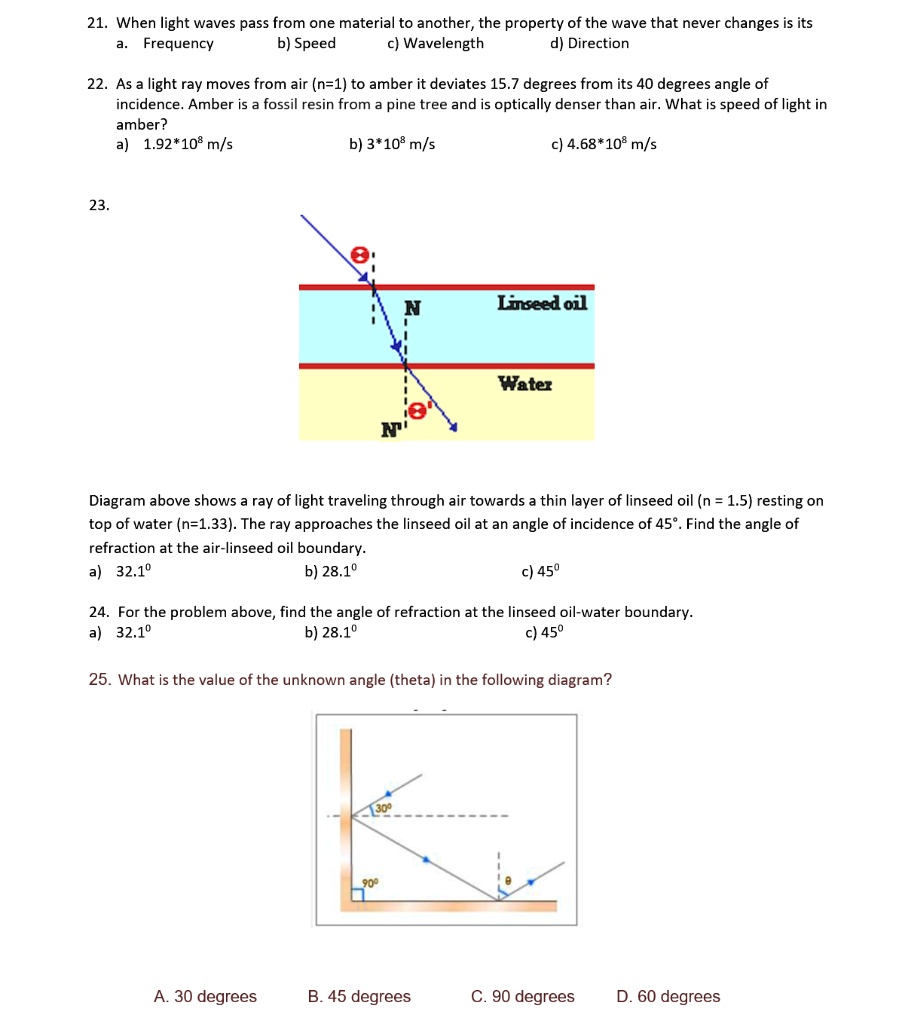

          21. When light waves pass from one material to another, the property of the wave that never changes is its
a. Frequency
b. Speed
c. Wavelength
d. Direction

22. As a light ray moves from air (n=1) to amber it deviates 15.7 degrees from its 40 degrees angle of incidence. Amber is a fossil resin from a pine tree and is optically denser than air. What is speed of light in amber?
a) 1.92*10^8 m/s
b) 3*10^8 m/s
c) 4.68*10^8 m/s

23.
Linseed oil
N
Water
N'
Diagram above shows a ray of light traveling through air towards a thin layer of linseed oil (n = 1.5) resting on top of water (n=1.33). The ray approaches the linseed oil at an angle of incidence of 45°. Find the angle of refraction at the air-linseed oil boundary.
a) 32.1°
b) 28.1°
c) 45°

24. For the problem above, find the angle of refraction at the linseed oil-water boundary.
a) 32.1°
b) 28.1°
c) 45°

25. What is the value of the unknown angle (theta) in the following diagram?
30°
90°
?
A. 30 degrees
B. 45 degrees
C. 90 degrees
D. 60 degrees
