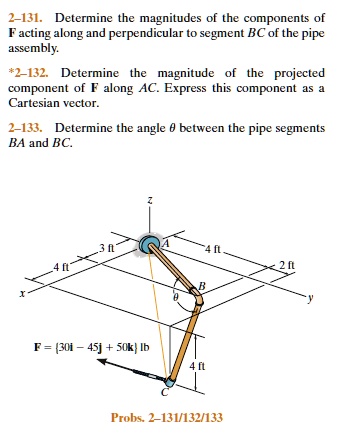

2-131. Determine the magnitudes of the components of F acting along and perpendicular to segment BC of the pipe assembly. *2-132. Determine the magnitude of the projected component of F along AC. Express this component as a Cartesian vector. 2-133. Determine the angle $\theta$ between the pipe segments BA and BC. F = (30\hat{i} - 45\hat{j} + 50\hat{k}) lb

          2-131. Determine the magnitudes of the components of
F acting along and perpendicular to segment BC of the pipe
assembly.
*2-132. Determine the magnitude of the projected
component of F along AC. Express this component as a
Cartesian vector.
2-133. Determine the angle $\theta$ between the pipe segments
BA and BC.
F = (30\hat{i} - 45\hat{j} + 50\hat{k}) lb

2-131. Determine the magnitudes of the components of
F acting along and perpendicular to segment BC of the pipe
assembly.
*2-132. Determine the magnitude of the projected
component of F along AC. Express this component as a
Cartesian vector.
2-133. Determine the angle θ between the pipe segments
BA and BC.
F = (30î - 45ĵ + 50k̂) lb

Added by Evan P.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Prem Bijarniya

Step 1

To determine the magnitudes of the components of F acting along and perpendicular to segment BC, we need to find the dot product of F and the unit vector along BC. The unit vector along BC can be found by dividing the vector BC by its magnitude. Let's assume BC = Show more…
