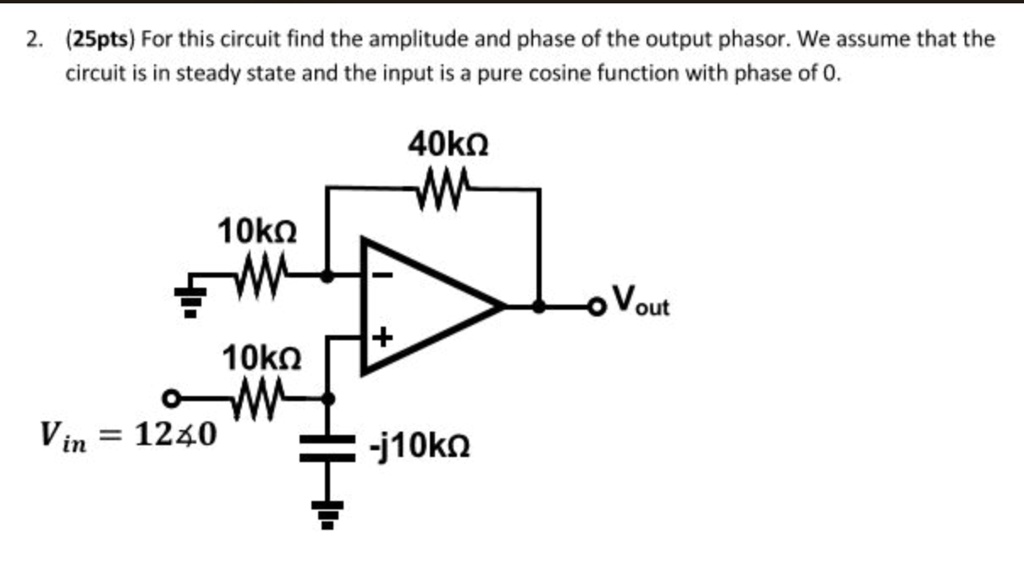

For this circuit find the amplitude and phase of the output phasor. We assume that the circuit is in steady state and the input is a pure cosine function with phase of 0. 40k? 10k? Vout + 10k? Vin = 12?0 -j10k?
Added by Lorenzo E.
Close
Step 1
Step 1: Interpret circuit as Vin (12∠0 V) driving a voltage divider where series impedance Z1 = 40kΩ and parallel branch of Z2 = 10kΩ in series with (-j10kΩ)?? — assume output Vout is across the series combination of 10kΩ and -j10kΩ which are in parallel with Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 71 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the circuit below, find the magnitude and phase difference in radians between an input sine wave Vin(w) and the output wave Vout(w) as a function of frequency. Plot the magnitude (log-log) and phase (linear-log) as a function of frequency. Vin(w) is across the left ports, Vout(w) is across the right ports.
Adi S.
Calculate v0(t) in the circuit shown in the figure below if i1(t) is 200 cos(10^5t + 60°) mA, i2(t) is 100 sin(10^5t + 90°) mA, and vS(t) = 10 sin(10^5t) V. (a) Find the amplitude of v0(t). (b) Find the phase of v0(t) in degrees. (a) 9.836 V (b) 70.745 degrees
Sri K.
Figure 2: A series LCR circuit. 1. A series LCR circuit. We wish to analyze the circuit shown to the left. To this end, we analyze the complex circuit shown to the right. (a) What is (i) Z1, (ii) Z2, and (iii) Z3 in terms of L, C, R, and ω? (b) Apply Kirchhoff's loop rule to the circuit to determine Ĩ the complex current amplitude: Give your answer in terms of ℰ0, L, C, R, and ω. (c) What are the real and imaginary parts of Ĩ? (d) One can write Ĩ = |Ĩ|e^iϕ where |Ĩ| is the magnitude of Ĩ and ϕ is its phase. Determine |Ĩ| and ϕ in terms of ℰ0, L, C, R, and ω. (e) Sketch |Ĩ|^2 as a function of ω. For what value of ω is |Ĩ|^2 maximum? Give your answer in terms of L, C, and R. (f) The actual current in the circuit is given by I = Re(Ĩe^iωt). Determine I. It is sufficient to give your answer in terms of |Ĩ|, ϕ, ω, and t.
Linda W.
Recommended Textbooks
University Physics with Modern Physics
Physics: Principles with Applications
Fundamentals of Physics
Transcript
18,000,000+
Students on Numerade
Trusted by students at 8,000+ universities
Watch the video solution with this free unlock.
