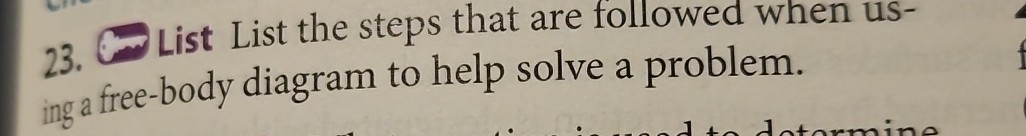

23. List List the steps that are followed when using a free-body diagram to help solve a problem.
Added by Aaron M.
Close
Step 1
Step 1: Identify the object of interest and isolate it from its surroundings. Show more…
Show all steps
Your feedback will help us improve your experience
Ivan Kochetkov and 91 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

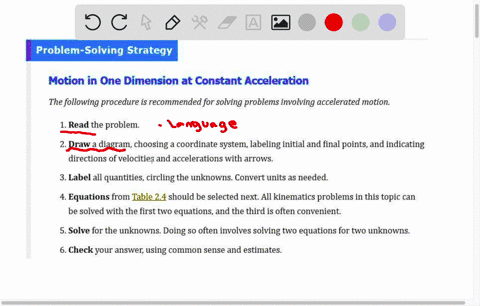

Problem-Solving Strategy Motion in One Dimension at Constant Acceleration The following procedure is recommended for solving problems involving accelerated motion. 1. Read the problem. 2. Draw a diagram, choosing a coordinate system, labeling initial and final points, and indicating directions of velocities and accelerations with arrows. 3. Label all quantities, circling the unknowns. Convert units as needed. 4. Equations from Table 2.4 should be selected next. All kinematics problems in this topic can be solved with the first two equations, and the third is often convenient. 5. Solve for the unknowns. Doing so often involves solving two equations for two unknowns. 6. Check your answer, using common sense and estimates.
Dave K.
Consider two blocks of masses m1 and m2 = 1.50m1 that are connected by a massless string over a massless, frictionless pulley. They are both resting in static equilibrium on opposite inclines of a frictionless triangle with angles ̘1 for m1 and ̘2 for m2. a. Draw a sketch of this problem showing the masses and the angles of the inclines. b. Draw the free body diagrams for both masses, indicating which coordinate system you will be using for each mass. c. Write down x and y components of Newton's second law for each mass. d. Using the equations from part (c), find symbolic the normal forces acting on each block, the tension in the string and the angle ̘2 that is needed to ensure static equilibrium. e. For the situation where the mass m2 is now equal to 2.00m1, and ̘1 = 60°, what are the accelerations of the two masses? (Hint: use the equation from part (d), using m2 = 1.50m1 to find ̘2, then set up a new system of equations for the non-equilibrium situation with m2 = 2.00m1)
Sam S.
Free-Body Diagrams and Newton's Laws When solving problems involving forces and Newton's laws, the following summary of things to do will start your mind thinking about getting involved in the problem at hand.
