240 MT #3 FIND-FIX-SOLVE FBD P W 18" 10" G Wsin60 Wcos60 Equilibrium Equation. $\sum M_B = 0$ $Wsin60(22) - Wcos60(10) - 18P = 0$ $P = \frac{210(22sin60 - 10cos60)}{18}$ $P = 163.9 lb$
Added by Anita W.
Close
Step 1
The equilibrium equation is given as: $\sum M_B = 0$ $Wsin60(22) - Wcos60(10) - 18P = 0$ $P = \frac{W(22sin60 - 10cos60)}{18}$ Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 65 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A frame supports both a linear distributed load and a concentrated moment, as shown in the figure below. The distributed load has a magnitude q_o = 220 N/m at point B which decreases linearly to zero at point C. The concentrated moment has a magnitude M_C = 55 N-m and acts at point C. The frame is held in equilibrium by a pin at point A and a cable BD. The horizontal and vertical dimensions are given as: L_1 = 5 m, L_2 = 1.5 m, and L_3 = 12 m. Neglect the thickness and weight of the frame for this analysis. Determine the internal normal force (P), internal shear force (V), and internal bending moment (M) at the following locations: (a) Point e, which lies 0.5 m to the left of point C. (b) Point f, which lies 9 m above point A.
Adi S.

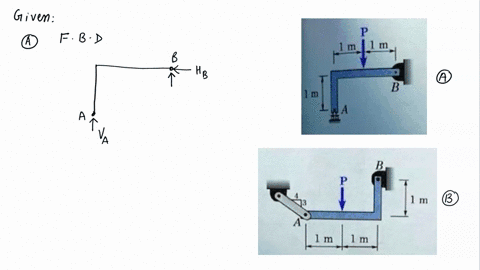

PROBLEMS 4.18 For each of the three systems, draw the free-body diagram of the rigid body AB supported and loaded as shown.
Sri K.

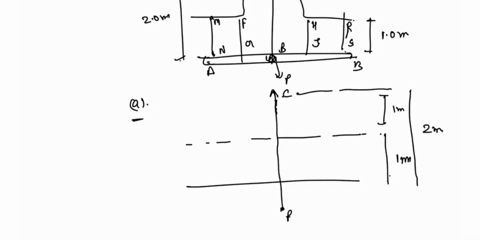

Problem 1 (12 points) The structure in the figure below consists of a rigid bar AB and five, stretchable cables fixed at the ceiling and placed symmetrically about the vertical line CD. A load P is applied to the rigid bar as shown. The cables are made of steel (E = 200 GPa) and have cross-sectional area of 100 mm2. Cables CD, FG, and HJ have a yield stress of 500 MPa and cable MN and RS have a yield stress equal to 250 MPa. Ignore the weight of the beam. a. Draw the free body diagram for the rigid beam (3 pts) b. Determine which cable(s) is/are going to yield first (3 pts) c. Determine the magnitude of load P (3 pts) and the corresponding vertical displacement of the bar AB when yield occurs in the structure. (3 pts)
