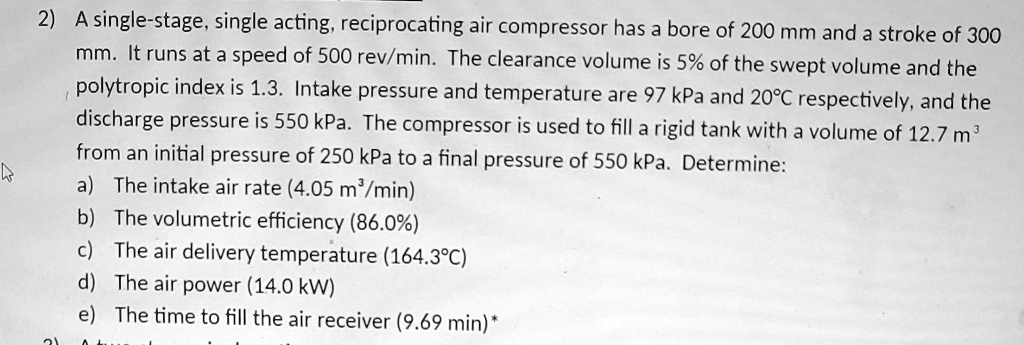

2) A single-stage, single acting, reciprocating air compressor has a bore of 200 mm and a stroke of 300 mm. It runs at a speed of 500 rev/min. The clearance volume is 5% of the swept volume and the polytropic index is 1.3. Intake pressure and temperature are 97 kPa and 20°C respectively, and the discharge pressure is 550 kPa. The compressor is used to fill a rigid tank with a volume of 12.7 m³ from an initial pressure of 250 kPa to a final pressure of 550 kPa. Determine: a) The intake air rate (4.05 m³/min) b) The volumetric efficiency (86.0%) c) The air delivery temperature (164.3°C) d) The air power (14.0 kW) e) The time to fill the air receiver (9.69 min)*
Added by Laura H.
Close
Step 1
Substituting the given values, we get Vs = π/4 * (0.2 m)² * 0.3 m * 500 rev/min = 4.71 m³/min. However, due to the clearance volume, the actual intake volume (Va) is less than the swept volume. The intake volume can be calculated using the formula Va = Vs * (1 - Show more…
Show all steps
Your feedback will help us improve your experience
Kratika Bhadauria and 59 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

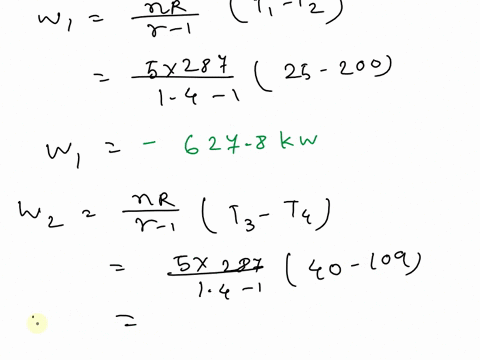

A two-stage air compressor compresses 5 kg/s of air from 100 kPa to 1000 kPa (see figure below). The first compressor stage compresses the air to 500 kPa and it is then cooled to 40°C by an intercooler. Assume both stages of the compressor are adiabatic and reversible. Calculate: a) the power required by the compressor stages (-878.5 kW, -346.4 kW), b) the heat rejected from the intercooler (-803.2 kW), c) what is the percent difference between the work done by the two-stage compressor shown above and a single-stage compressor for the same pressure increase? Assume the single stage of the compressor is adiabatic and reversible (13.7%). Use: R = 0.287 kJ/kgK, Cv = 0.717 kJ/kgK, Cp = 1.004 kJ/kgK
Madhur L.
Air enters a two-stage compressor at a mass flow rate of 14 psia, 60°F, and 6000 ft^3/min. The compression at each stage is a polytropic process with n=1.27. The air is cooled between stage one and two to 80°F, and the air exits the compressor at 150 psi. The intercooler operates at 45 psia, and the compressibility factor at each stage is 0.99. Determine: a) Polytropic head at stage one b) Compressor power at stage one in Btu/min c) Heat transfer rate at stage one in Btu/min d) Heat transfer rate in the intercooler in Btu/min R = 53.3 lbf-ft/lbm°F.
