Consider the forward transformation of the two-joint manipulator. Given that the length of joint 1, L1= 12 in, the length of joint 2, L2=10 in., the angle ?1= 30°, and the angle ?2 = 45°, compute the coordinates for the end of the arm.
Added by Marc L.
Close
Step 1
Step 1: Identify the given parameters: - Length of joint 1, \( L_1 = 12 \) inches - Length of joint 2, \( L_2 = 10 \) inches - Angle \( \theta_1 = 30^\circ \) - Angle \( \theta_2 = 45^\circ \) Show more…
Show all steps
Your feedback will help us improve your experience
Rashmi Sinha and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the three-link planar (RPR) manipulator shown below. For given joint variables θ1, θ2, and the second link length, kinematics are calculated as: 1. The forward kinematics: cos(θ1 + θ2) -sin(θ1 + θ2) 0 sin(θ1 + θ2) cos(θ1 + θ2) 0 0 0 1 2. Assign joint variables and kinematic parameters in the figure above following the D-H method to result in the above composite transformation matrix. 2. Find θ1 and θ2 for a given end-effector position.
Sri K.
The xy-coordinates of the hand for a robotic arm are shown in the following figures. For figure 1. (a) The length of the arm is units. (b) Write the sine and cosine functions for the angle θ. sin θ = (Type an integer or a simplified fraction) cos θ = (Type an integer or a simplified fraction) For figure 2, (a) The length of the arm is units. (b) Write the sine and cosine functions for the angle θ. sin θ = (Type an integer or a simplified fraction) cos θ = (Type an integer or a simplified fraction)
Darshan M.

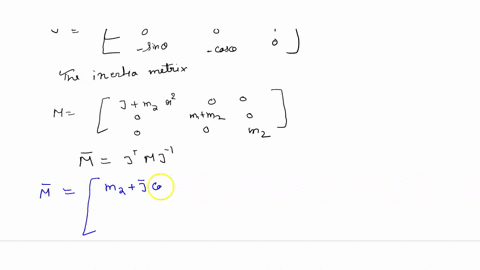

EXAMPLE 3.5-1: Cartesian Dynamics for Three-Link Cylindrical Arm Let us show how to convert the joint space dynamics found in Example 3.2.3 to Cartesian dynamics. From Example A.3-1, the arm Jacobian is J = [ -r cos ̘ 0 -sin ̘ -r sin ̘ 0 cos ̘ 0 1 0 ] whence its inverse is J^-1 = [ -(cos ̘) / r -(sin ̘) / r 0 0 0 1 -sin ̘ -cos ̘ 0 ] From Example 3.2.3 the arm inertia matrix is M = [ J + m2r^2 0 0 0 m1 + m2 0 0 0 m2 ] Applying (3.5.11) yields (verify!) Ṁ = J^-T M J^-1 = [ m2 + Ĵ cos^2 ̘ Ĵ sin ̘ cos ̘ 0 Ĵ sin ̘ cos ̘ m2 + Ĵ sin^2 ̘ 0 0 0 m1 + m2 ] where Ĵ ≡ J/r^2. In a similar fashion, one may compute Ł.
