Question

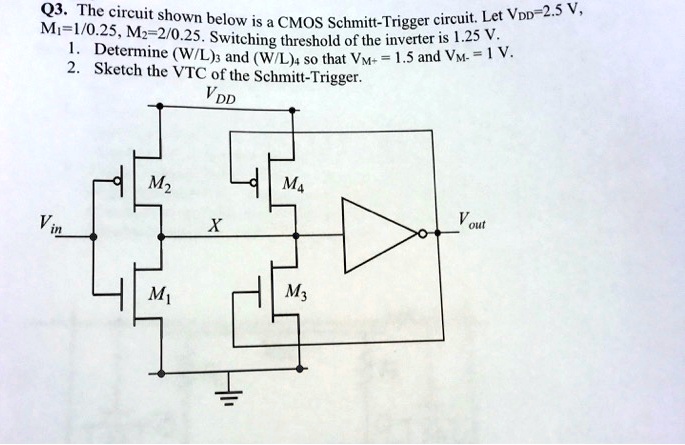

Q3. The circuit shown below is a CMOS Schmitt-Trigger circuit. Let $V_{DD}$=2.5 V, $M_1$=1/0.25, $M_2$=2/0.25. Switching threshold of the inverter is 1.25 V. 1. Determine (W/L)$_3$ and (W/L)$_4$ so that $V_M^+$ = 1.5 and $V_M^-$ = 1 V. 2. Sketch the VTC of the Schmitt-Trigger.

          Q3. The circuit shown below is a CMOS Schmitt-Trigger circuit. Let $V_{DD}$=2.5 V,
$M_1$=1/0.25, $M_2$=2/0.25. Switching threshold of the inverter is 1.25 V.
1. Determine (W/L)$_3$ and (W/L)$_4$ so that $V_M^+$ = 1.5 and $V_M^-$ = 1 V.
2. Sketch the VTC of the Schmitt-Trigger.

Q3. The circuit shown below is a CMOS Schmitt-Trigger circuit. Let VDD=2.5 V,
M1=1/0.25, M2=2/0.25. Switching threshold of the inverter is 1.25 V.
1. Determine (W/L)3 and (W/L)4 so that VM^+ = 1.5 and VM^- = 1 V.
2. Sketch the VTC of the Schmitt-Trigger.
