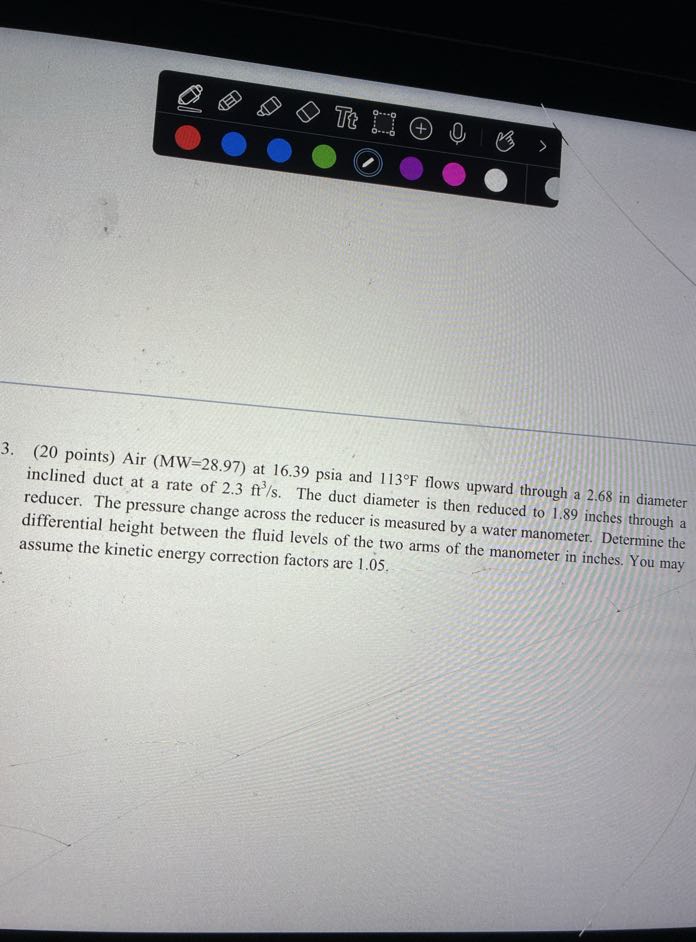

3. ( 20 points) Air \( (\mathrm{MW}=28.97) \) at 16.39 psia and \( 113^{\circ} \mathrm{F} \) flows upward through a 2.68 in diameter inclined duct at a rate of \( 2.3 \mathrm{ft}^{3} / \mathrm{s} \). The duct diameter is then reduced to 1.89 inches through a reducer. The pressure change across the reducer is measured by a water manometer. Determine the differential height between the fluid levels of the two arms of the manometer in inches. You may assume the kinetic energy correction factors are 1.05.
Added by Darnell C.
Close
Step 1
- Temperature: \(113^\circ \text{F} = 113 + 459.67 = 572.67 \, \text{R}\) - Pressure: \(16.39 \, \text{psia} = 16.39 \times 144 \, \text{lb/ft}^2 = 2358.16 \, \text{lb/ft}^2\) Show more…
