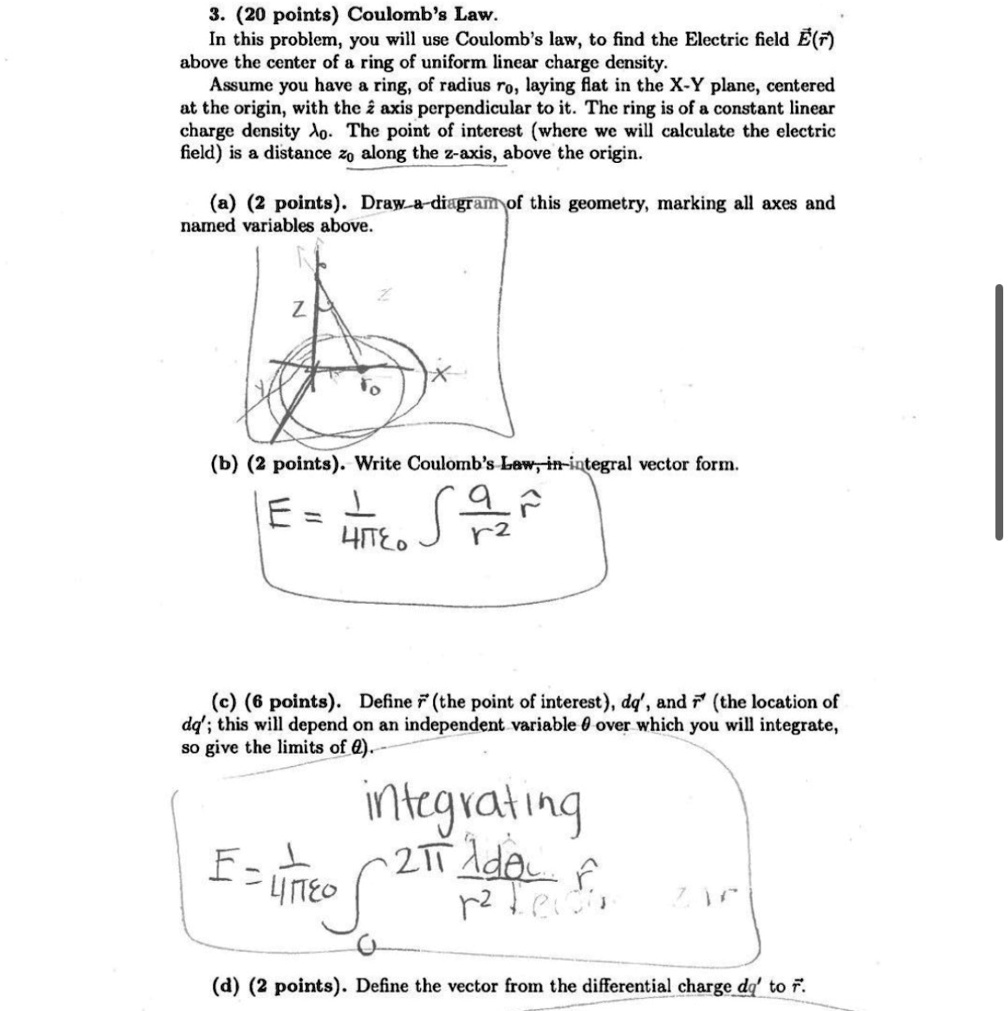

3. (20 points) Coulomb's Law. In this problem, you will use Coulomb's law, to find the Electric field $\vec{E}(\vec{r})$ above the center of a ring of uniform linear charge density. Assume you have a ring, of radius $r_0$, laying flat in the X-Y plane, centered at the origin, with the z axis perpendicular to it. The ring is of a constant linear charge density $\lambda_0$. The point of interest (where we will calculate the electric field) is a distance $z_0$ along the z-axis, above the origin. (a) (2 points). Draw a diagram of this geometry, marking all axes and named variables above. (b) (2 points). Write Coulomb's Law, in integral vector form. $\vec{E} = \frac{1}{4\pi\epsilon_0} \int \frac{\vec{q}}{r^2} d\vec{r}$ (c) (6 points). Define $\vec{r}$ (the point of interest), $dq$, and $\vec{r}'$ (the location of $dq$; this will depend on an independent variable $\theta$ over which you will integrate, so give the limits of $\theta$). $\vec{E} = \frac{1}{4\pi\epsilon_0} \int_0^{2\pi} \frac{\lambda_0 r_0 d\theta}{r^2} \vec{r}$ (d) (2 points). Define the vector from the differential charge $dq$ to $\vec{r}$.

          3. (20 points) Coulomb's Law.
In this problem, you will use Coulomb's law, to find the Electric field $\vec{E}(\vec{r})$ above the center of a ring of uniform linear charge density.
Assume you have a ring, of radius $r_0$, laying flat in the X-Y plane, centered at the origin, with the z axis perpendicular to it. The ring is of a constant linear charge density $\lambda_0$. The point of interest (where we will calculate the electric field) is a distance $z_0$ along the z-axis, above the origin.
(a) (2 points). Draw a diagram of this geometry, marking all axes and named variables above.
(b) (2 points). Write Coulomb's Law, in integral vector form.
$\vec{E} = \frac{1}{4\pi\epsilon_0} \int \frac{\vec{q}}{r^2} d\vec{r}$
(c) (6 points). Define $\vec{r}$ (the point of interest), $dq$, and $\vec{r}'$ (the location of $dq$; this will depend on an independent variable $\theta$ over which you will integrate, so give the limits of $\theta$).
$\vec{E} = \frac{1}{4\pi\epsilon_0} \int_0^{2\pi} \frac{\lambda_0 r_0 d\theta}{r^2} \vec{r}$
(d) (2 points). Define the vector from the differential charge $dq$ to $\vec{r}$.

Show more…

3 20 points coulombs law in this problem you will use coulombs law to find the electric field vecevecr above the center of a ring of uniform linear charge density assume you have a ring of r 86831

Added by Calvin U.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Frank Deng

06/02/2022

Step 1

We want to find the electric field $\vec{E}$ at a point $(0,0,z_0)$ on the z-axis. Show more…

Show all steps

lock

Thanks for your feedback!

3. (20 points) Coulomb's Law. In this problem, you will use Coulomb's law, to find the Electric field $\vec{E}(\vec{r})$ above the center of a ring of uniform linear charge density. Assume you have a ring, of radius $r_0$, laying flat in the X-Y plane, centered at the origin, with the z axis perpendicular to it. The ring is of a constant linear charge density $\lambda_0$. The point of interest (where we will calculate the electric field) is a distance $z_0$ along the z-axis, above the origin. (a) (2 points). Draw a diagram of this geometry, marking all axes and named variables above. (b) (2 points). Write Coulomb's Law, in integral vector form. $\vec{E} = \frac{1}{4\pi\epsilon_0} \int \frac{\vec{q}}{r^2} d\vec{r}$ (c) (6 points). Define $\vec{r}$ (the point of interest), $dq$, and $\vec{r}'$ (the location of $dq$; this will depend on an independent variable $\theta$ over which you will integrate, so give the limits of $\theta$). $\vec{E} = \frac{1}{4\pi\epsilon_0} \int_0^{2\pi} \frac{\lambda_0 r_0 d\theta}{r^2} \vec{r}$ (d) (2 points). Define the vector from the differential charge $dq$ to $\vec{r}$.

Play audio

Feedback

Powered by NumerAI

Frank Deng and 93 other subject Physics 103 educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

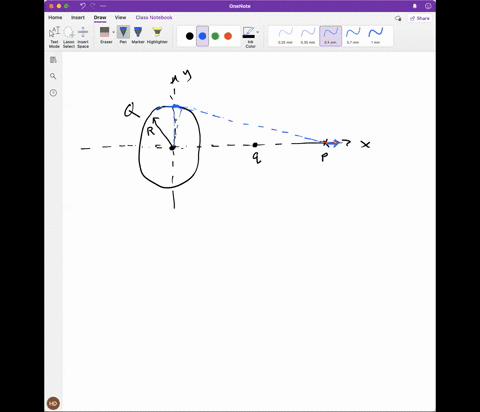

00:01 Now here you ask to evaluate the electric field of the foreign charge distribution, right? first you have a ring of charge.
