3) (a) Calculate the total resistance in a series-parallel circuit for figure 2 in the discussio

Question

Emily Anderson · Accepted Answer

(a) In the series-parallel circuit, resistors R1 and R2 are in series, as are resistors R3 and R

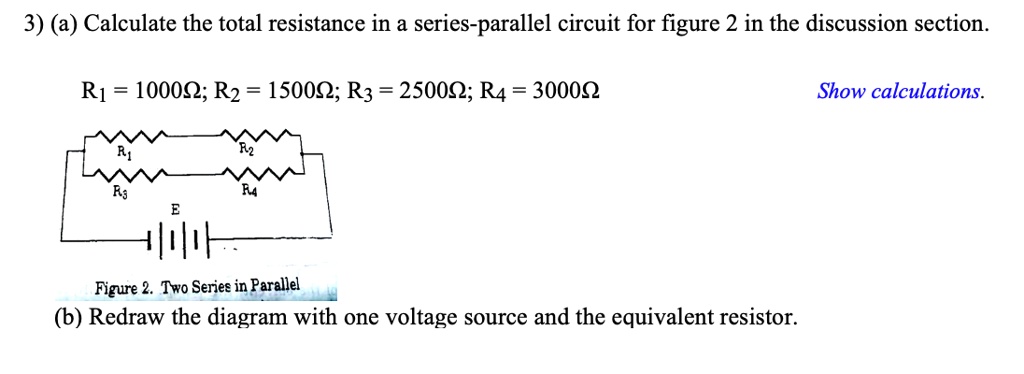

3) (a) Calculate the total resistance in a series-parallel circuit for figure 2 in the discussion section. R1 = 1000?; R2 = 1500?; R3 = 2500?; R4 = 3000? Show calculations. Figure 2. Two Series in Parallel (b) Redraw the diagram with one voltage source and the equivalent resistor.
