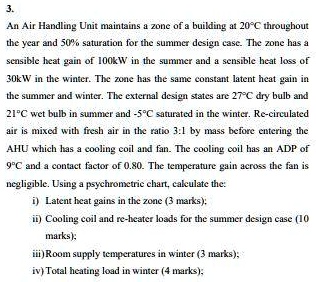

3. An Air Handling Unit maintains a zone of a building at 20°C throughout the year and 50% saturation for the summer design case. The zone has a sensible heat gain of 100kW in the summer and a sensible heat loss of 30kW in the winter. The zone has the same constant latent heat gain in the summer and winter. The external design states are 27°C dry bulb and 21°C wet bulb in summer and -5°C saturated in the winter. Re-circulated air is mixed with fresh air in the ratio 3:1 by mass before entering the AHU which has a cooling coil and fan. The cooling coil has an ADP of 9°C and a contact factor of 0.80. The temperature gain across the fan is negligible. Using a psychrometric chart, calculate the: i) Latent heat gains in the zone (3 marks); ii) Cooling coil and re-heater loads for the summer design case (10 marks); iii) Room supply temperatures in winter (3 marks); iv) Total heating load in winter (4 marks);
Added by Fernando S.
Close
Step 1
Since the sensible heat gain is given as 100 kW, we can assume that the constant latent heat gain is also 100 kW. ii) To calculate the cooling coil and re-heater loads for the summer design case, we need to consider the sensible heat gain, the ADP of the cooling Show more…
