3. A 10 kg block sits on a frictionless horizontal surface. A constant force of 35 N is exerted on the block at an angle of 26.0° as shown and the block moves to the right. a) Draw a free body diagram for the block. b) What is the normal force acting on the block?
Added by Michelle F.
Close
Step 1
The block is sitting on a frictionless horizontal surface, so there is no friction force acting on it. There are two forces acting on the block: the force of 35 N exerted on the block at an angle of 26.0°, and the normal force exerted by the surface on the Show more…
Show all steps
Your feedback will help us improve your experience
Mkhitar Hobosyan and 52 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

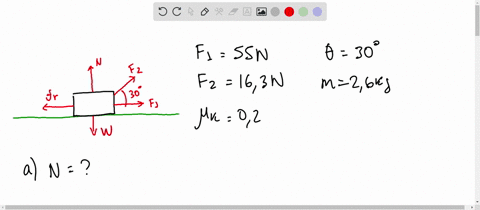

(Problem 3: A horizontal force, F1 = 55 N, and a force, F2 = 16.3 N acting at an angle of θ to the horizontal, are applied to a block of mass m = 2.6 kg. The coefficient of kinetic friction between the block and the surface is μk = 0.2. The block is moving to the right. Question: Solve numerically for the magnitude of the normal force, FN in Newtons, that acts on the block if θ = 30°. and, Solve numerically for the magnitude of acceleration of the block, a in m/s2, if θ = 30°.
Eduard S.
A 1 kg block slides on a rough horizontal surface. A force (P = 15 N) is applied to the block as shown. The magnitude of the block's acceleration is m/s². Using your free body diagram of the block, compare the magnitude of the normal force (n) on the block and the magnitude of the force of gravity on it (Fg = mg).
Vishal G.
A block of mass m = 12.72 kg is at rest on a friction-less table. A student comes along and pulls the book with a force 96 N, at an angle 39.9° as shown in the figure. Determine the magnitude of the normal force (in N) acting on the block.
Narayan H.
