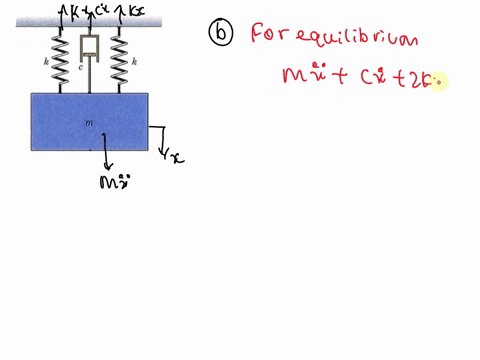

3. Consider the mass-spring-damper system as shown in the accompanying figure and determine the equation of motion and natural frequency of the system.
Added by Stephanie J.
Close
Step 1
Step 1: The equation of motion for the system can be obtained by applying Newton's second law of motion. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 88 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Question 2 [27] A spring-mass system shown in Figure 2 has a mass of m1 = 50 kg and m2 = 50 kg. The springs supporting the effective spring constant of k1 = 220 N/m, k2 = 200 N/m and k3 = 180 N/m. Damper with a damping coeffient of c1 = 50 N s/m, c2 = 40 N s/m and c3 = 30 N s/m. 2.1. Construct the model in Wolfram system modeller for 10 seconds using Translational components, giving mass m1 a displacement of 0.1m, plot the displacement graphs for both x1 and x2 on the same graph. [9] 2.2. Determine the matrix for the system. [10] 2.3. Determine the natural frequencies of the system. [8] Figure 2 Spring-mass system
Adi S.
Madhur L.
1.41. Consider a spring–mass–damper system, like the one in Figure 1.9, with the following values: m = 10 kg, c = 3 N/s, and k = 1000 N/m. (a) Is the system overdamped, underdamped, or critically damped? (b) Compute the solution if the system is given initial conditions x0 = 0.01 m and v0 = 0. 1.42. Consider a spring–mass–damper system with equation of motion given by ẍ + 2ȡ + 2x = 0. Compute the damping ratio and determine if the system is overdamped, underdamped, or critically damped. 1.55. Calculate the solution to ẍ + ȡ + x = 0 with x0 = 1 and v0 = 0 for x(t) and sketch the response. 1.56. A spring–mass–damper system has mass of 100 kg, stiffness of 3000 N/m, and damping coefficient of 300 kg/s. Calculate the undamped natural frequency, the damping ratio, and the damped natural frequency. Does the solution oscillate? Finish the class example: Assume that the motion of a mass–spring system with damping is governed by d²y/dt² + b dy/dt + 25y = 0 ; y(0) = 1 , y'(0) = 0 . Find the equation of motion and sketch its graph for the three cases where b = 6, 10, and 12.
