3 omega rl 5 omega 7v 2a 8 omega 4v a value of resistor rl...

3 $\Omega$ $R_L$ 5 $\Omega$ 7V 2A 8 $\Omega$ 4V a) Value of resistor, $R_L$, remainder of circuit to deliver maximum power? b) max power that a well-chosen resistor, $R_L$, can absorb to is closest to?

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Transcript

00:01 Hello students, first to find the value of r, we need to short the circuit by maintaining short the voltage source and connecting 1 ampere load.

00:11 By doing so, we get this circuit.

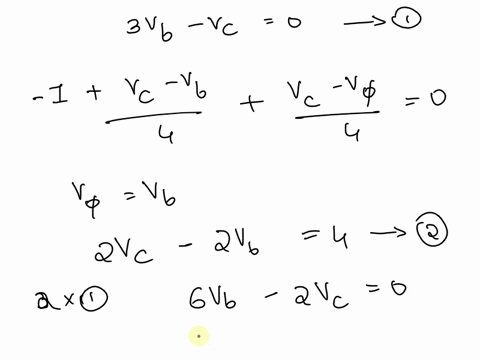

00:15 Now applying loader analysis, we can write voltage at point a is 0, then voltage at b by 4 plus vb by 4 plus vb minus vc divided by 4 is equated to voltage va which is 0.

00:39 From this we obtain the equation 3 vb minus vc is equal to 0.

00:46 Consider this as equation 1.

00:48 Now for vc, we can write minus 1 plus vc minus vb divided by 4 plus vc minus v5 divided by 4 is equal to 0.

01:02 Here in the circuit we can observe that v5 is nothing but voltage vb.

01:09 Substituting as such we get 2 vc minus 2 vb is equal to 4.

01:16 This is equation 2.

01:20 To get simultaneous equation, multiply equation 1 by 2 so that we get 6 vb minus 2 vc is equal to 0.

01:33 Then second equation 2 vc minus 2 vb is equal to 0.

01:38 Here plus 2 vc and minus 2 vc get cancelled.

01:43 6 minus 2 will be 4 vb which is equal to 4.

01:51 So that vb will be equal to 4 by 4 which is equal to 1.

01:58 As vb equal to 1 volt, we get vc is equal to 3 vb which is equal to 3 volts.
