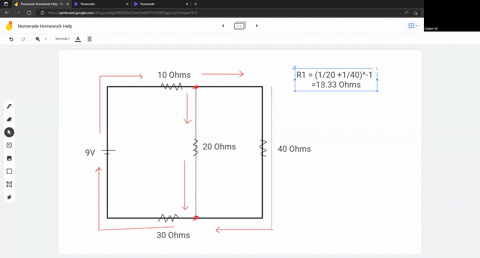

My dear learners, in this problem, let's draw the circuit diagram first.
00:06
Here we have an emf source.
00:07
This is a positive terminal.
00:08
This is the negative terminal.
00:10
With this emf source, we have a resistor connected this way.
00:15
And with this resistor, we have another resistor connected this way.
00:20
And this is finally connected with the negative terminal of the battery.
00:24
From this node, we have another resistor connected this way.
00:28
And from this node we have we have another emf source connected this way this is positive terminal this is negative terminal and from here in this branch we have one another register connected and in the last branch final branch we have only one register connected this way and this is connected here let's label the circuit components this emf source is given name v1 this is positive this negative terminal and this resistance this resistance and has been named r2 and this has been named r1 this has been given name r3 this has been labeled as r4 and finally this has been labeled as r5 and this source this is positive this is negative this is negative it has been labeled as v2 now let's label the currents the current in this branch it has been given name i1 the current in this branch downwards it has been given name i2 the branch in this current it has been given name i 3 and the branch the current in this branch it has been given name i 2 the current in this branch it is labeled as i 4 all right and the current in this branch it has been named as i -5.
02:07
So this is our circuit diagram.
02:11
Now we are having three loops here...
