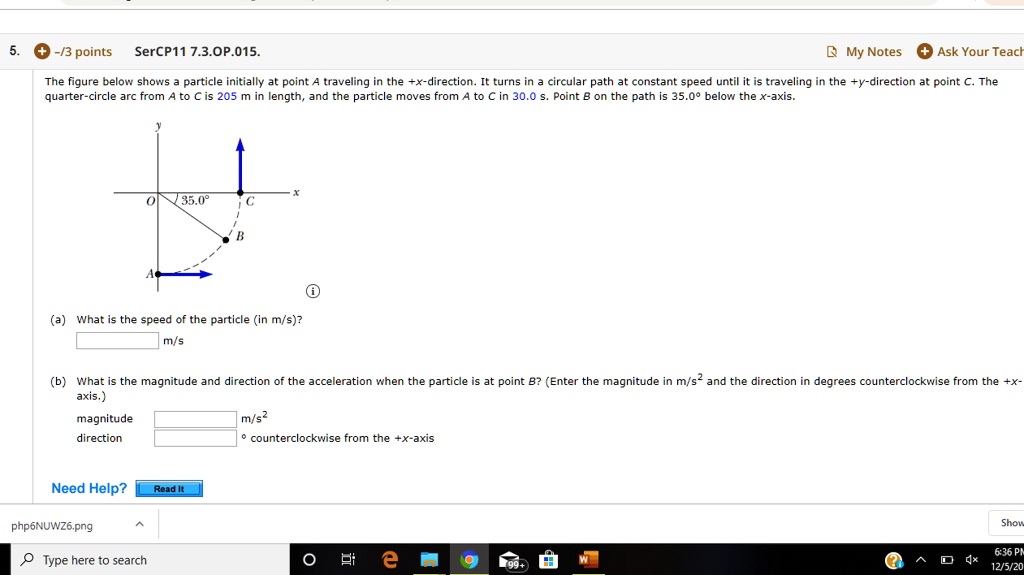

The figure below shows a particle initially at point A traveling in the +x-direction. It turns in a circular path at constant speed until it is traveling in the +y-direction at point C. The quarter-circle arc from A to C is 205 m in length, and the particle moves from A to C in 30.0 s. Point B on the path is 35.0° below the x-axis. (a) What is the speed of the particle (in m/s)? m/s (b) What is the magnitude and direction of the acceleration when the particle is at point B? (Enter the magnitude in m/s² and the direction in degrees counterclockwise from the +x-axis.) magnitude m/s² direction ° counterclockwise from the +x-axis
Added by Jesse M.
Close
Step 1
Given distance = 205 m and time = 30 seconds, we have: \[ \text{Speed} = \frac{205 \text{ m}}{30 \text{ s}} = 6.83 \text{ m/s} \] ** Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 76 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

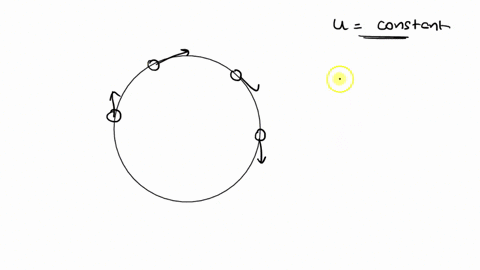

For a particle moving along a circular path with a constant speed, the acceleration is constant in direction magnitude both magnitude and direction neither magnitude nor direction
Gopal S.
"For a particle moving along a circular path with a constant speed, the acceleration is constant in A) Magnitude B) Direction C) Both magnitude and direction D) Neither magnitude nor direction"
A particle $P$ travels along an clliptical spiral path such that its position vector $\mathbf{r}$ is defined by $\mathbf{r}=\{2 \cos (0.1 t) \mathbf{i}+1.5 \sin (0.1 t) \mathbf{j}+(2 t) \mathbf{k}\} \mathrm{m},$ where $t$ is in seconds and the arguments for the sine and cosine are given in radians. When $t=8$ s, determine the coordinate direction angles $\alpha, \beta,$ and $\gamma,$ which the binormal axis to the osculating plane makes with the $x, y,$ and $z$ axes. Hint: Solve for the velocity $\mathbf{v}_{P}$ and acceleration a of the particle in terms of their i, j, k components. The binormal is parallel to $v_{P} \times a_{P} .$ Why?
