Problem 09.101 - Mohr's circle for the orientation of the principle axes and the principal moments of inertia
10 points
eBook
Hint
Print
References
Using Mohr's circle, determine for the area indicated the orientation of the principal centroidal axes and the corresponding values of the moments of inertia. Given that $\overline{I}_{x}=2.28 \text{ in}^{4}$, $\overline{I}_{y}=4.87 \text{ in}^{4}$, and $\overline{I}_{xy}=-1.77 \text{ in}^{4}$.
0.25 in.
0.980 in.
y
0.487 in.
x
C
2 in.
L3 $\times$ 2 $\times$ $\frac{1}{4}$
0.25 in.
3 in.

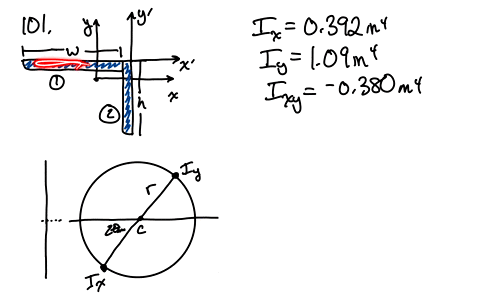

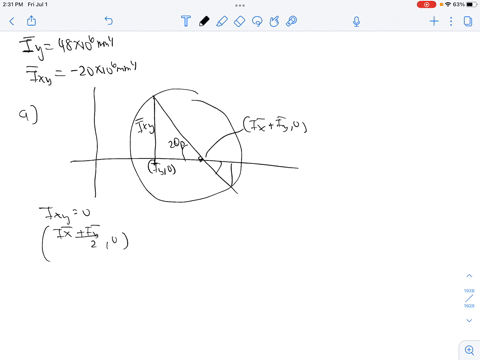

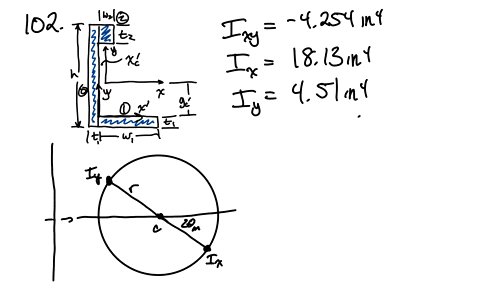

The principal axes are obtained by rotating the xy axes through $\square^{\circ}$ about C. $\circlearrowright$
The maximum moment of inertia is $\square$ in$^{4}$. (Round the final answer to three decimal places.)
The minimum moment of inertia is $\square$ in$^{4}$. (Round the final answer to three decimal places.)
