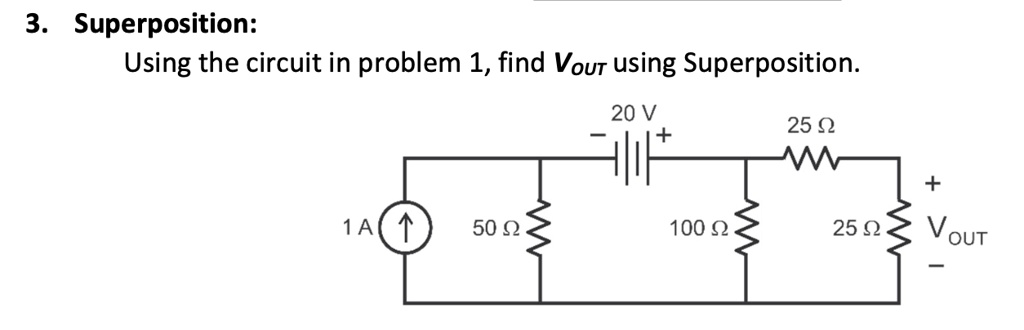

3. Superposition: Using the circuit in problem 1, find $V_{OUT}$ using Superposition. 20 V 25 ? + + 1A? 50 ? 100 ? 25 ? $V_{OUT}$

          3. Superposition:
Using the circuit in problem 1, find $V_{OUT}$ using Superposition.
20 V
25 ?
+
+
1A?
50 ?
100 ?
25 ?
$V_{OUT}$

Added by Ray A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

09/19/2023

Step 1

The circuit becomes a voltage divider. $V_{OUT1} = 20V \times \frac{25\Omega || 25\Omega}{25\Omega || 25\Omega + 100\Omega} = 20V \times \frac{12.5\Omega}{112.5\Omega} = \frac{250}{112.5} V \approx 2.22 V$ Show more…
