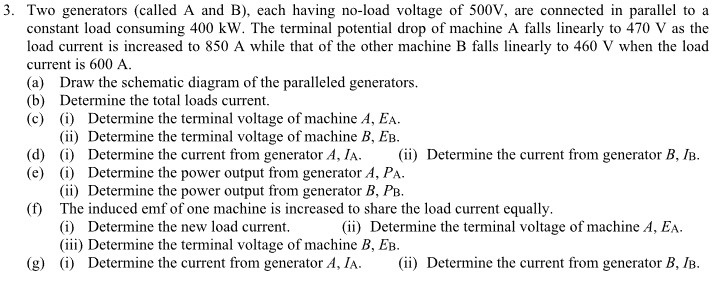

3. Two generators (called A and B), each having no-load voltage of 500V, are connected in parallel to a constant load consuming 400 kW. The terminal potential drop of machine A falls linearly to 470 V as the load current is increased to 850 A while that of the other machine B falls linearly to 460 V when the load current is 600 A. (a) Draw the schematic diagram of the paralleled generators. (b) Determine the total loads current. (c) (i) Determine the terminal voltage of machine A, EA. (ii) Determine the terminal voltage of machine B, EB. (d) (i) Determine the current from generator A, IA. (ii) Determine the current from generator B, IB. (e) (i) Determine the power output from generator A, PA. (ii) Determine the power output from generator B, PB. (f) The induced emf of one machine is increased to share the load current equally. (i) Determine the new load current. (ii) Determine the terminal voltage of machine A, EA. (iii) Determine the terminal voltage of machine B, EB. (g) (i) Determine the current from generator A, IA. (ii) Determine the current from generator B, IB.
Added by Donna V.
Close
Step 1
- Draw two generators labeled A and B connected in parallel. - Connect the parallel combination to a load consuming 400 kW. Show more…
Show all steps
