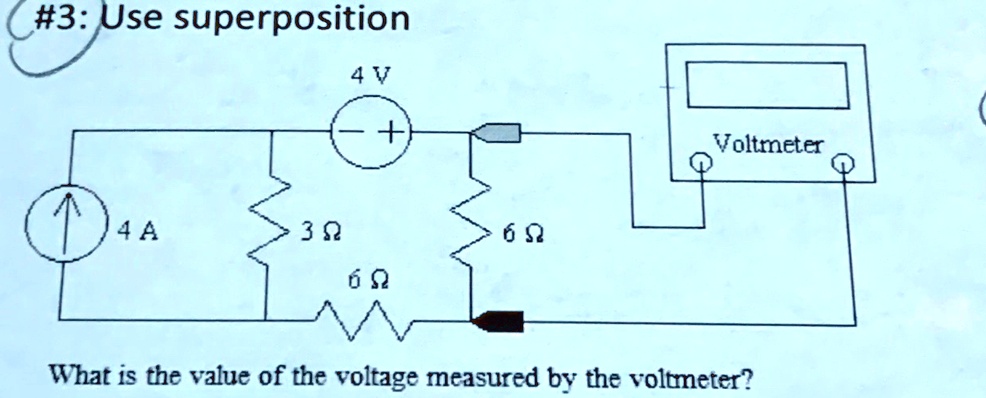

#3: Use superposition What is the value of the voltage measured by the voltmeter? #3:Use superposition 4 Voltmeter 4A 3 69 69 What is the value of the voltage measured by the voltmeter?
Added by Victor M.
Close
Step 1
Using Ohm's Law (V = IR), the voltage measured by the voltmeter due to the 4A current source alone is: V = 4A * 3Ω = 12V Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 76 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

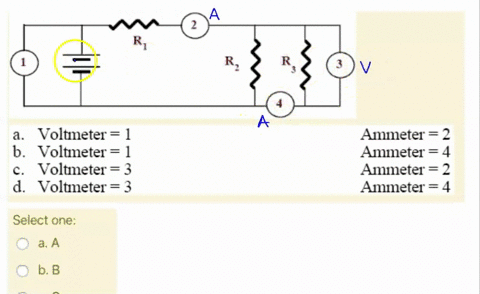

If we wish to measure the current through and voltage across resistor R3, what configuration would be necessary? Select one: a. A b. B c. C d. D
Sri K.
In measuring a voltage, a voltmeter uses some current from the circuit. Consequently, the voltage measured is only an approximation to the voltage present when the voltmeter is not connected. Consider a circuit consisting of two $1550-\Omega$ resistors connected in series across a $60.0-\mathrm{V}$ battery. (a) Find the voltage across one of the resistors. (b) A voltmeter has a full-scale voltage of $60.0 \mathrm{~V}$ and uses a galvanometer with a full-scale deflection of $5.00 \mathrm{~mA}$. Determine the voltage that this voltmeter registers when it is connected across the resistor used in part (a).
A voltmeter and an ammeter are used to respectively monitor the voltage across and the current through a resistor connected to an AC source. If the resistor has a value of 12.50 Ω and the ammeter reads 8.12 A, determine the following: - The voltage (in V) across the resistor. - The peak voltage (in V) of the source. - The maximum current (in A) in the resistor. - The average power (in W) delivered to the resistor.
