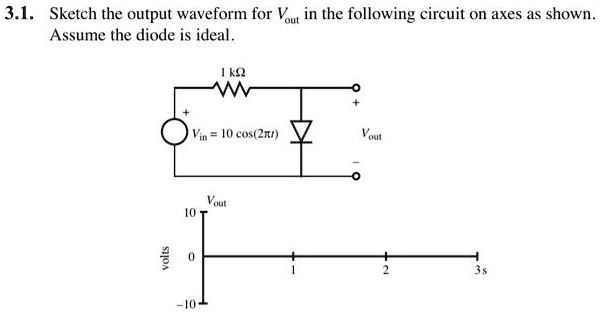

Hi, here in this given problem, input signal, voltage signal that is given as a function of cosine, it's amplitude 10.
00:14
So this is 10 cost 2 pi t.
00:22
And it is being fed to the p -crystal of a pn junction diode in series.
00:30
With it, there is one kilo -oom.
00:32
So for the positive half -sides, cycle p and junction diode will be forward biased as it will be forward biased so there will be a current passing through this circuit but this diode will offer no resistance in the path of that current no resistance and hence no potential drop will take place across it.
01:54
So for this first cycle, we will get zero.
02:01
Means no output will be obtained.
02:05
It will remain flat.
02:08
Okay.
02:08
Now, so no output.
02:18
Now, for negative half cycle and the frequency that is one.
02:36
Okay...
