3/106 If the weight of the boom is negligible compared with the applied \( 30-\mathrm{kN} \) load, determine the cable tensions \( T_{1} \) and \( T_{2} \) and the force acting at the ball joint at \( A \). Problem 3/106
Added by Heidi J.
Close
Step 1
- Point A: (0, 0, 0) - Point B: (4, 0, 3) - Point C: (4, 3, 0) - Point D: (0, 0, 3) Show more…
Show all steps
Your feedback will help us improve your experience
Jacob Fry and 70 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

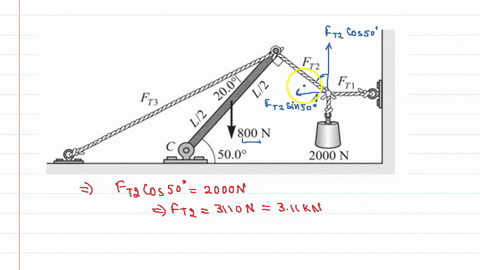

For the situation drawn in Fig. $5-12(a)$, find $F_{T 1}, F_{T 2}$, and $F_{T 3}$. The boom is uniform and weighs $800 \mathrm{~N}$. First apply the force condition to point- $A$. The appropriate free-body diagram is shown in Fig. $5-12(b)$. We then have $$ F_{T 2} \cos 50.0^{\circ}-2000 \mathrm{~N}=0 \quad \text { and } \quad F_{T 1}-F_{T 2} \sin 50.0^{\circ}=0 $$ From the first of these we find $F_{T 2}=3.11 \mathrm{kN} ;$ then the second equation gives $F_{T 1}=2.38 \mathrm{kN}$. Let us now isolate the boom and apply the equilibrium conditions to it. The appropriate free-body diagram is found in Fig. $5-12(c)$. The torque equation, for torques taken about point $C$, is $$ \text { \& } \sum \tau_{C}=+(L)\left(F_{T 3}\right)\left(\sin 20.0^{\circ}\right)-(L)(3110 \mathrm{~N})\left(\sin 90.0^{\circ}\right)-(L / 2)(800 \mathrm{~N})\left(\sin 40.0^{\circ}\right)=0 $$ Solving for $F_{T 3}$, we compute it to be $9.84 \mathrm{kN}$. If it were required, we could find $F_{R H}$ and $F_{R V}$ by using the $x$ - and $y$ -force equations.
Supratim P.
The 40 -ft boom $A B$ weighs 2 kips; the distance from the axle $A$ to the center of gravity $G$ of the boom is $20 \mathrm{ft}$. For the position shown, determine $(a)$ the tension $T$ in the cable, $(b)$ the reaction at $A .$
