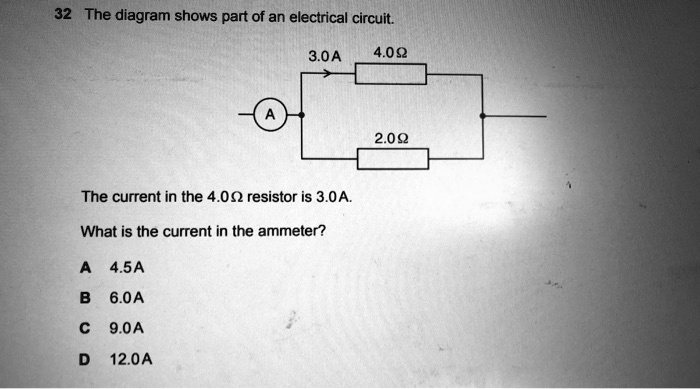

32 The diagram shows part of an electrical circuit. 3.0A 4.0 ? 2.0 ? The current in the 4.0 ? resistor is 3.0 A. What is the current in the ammeter? A 4.5 A B 6.0 A C 9.0 A D 12.0 A
Added by Juan B.
Close
Step 1
We know the current in the 4.0Ω resistor is 3.0A. Show more…
Show all steps
