*3.86 Water flows from a large tank and through a pipe of variable area as shown in Fig. 3.86. The area of the pipe is given by $A = A_0[1 - x(1 - x/\ell)/2\ell]$, where $A_0$ is the area at the beginning ($x = 0$) and end ($x = \ell$) of the pipe. Plot graphs of the pressure within the pipe as a function of distance along the pipe for water depths of $h = 1, 4, 10$, and $25$ m. Free jet $x = 0$ Figure P3.86

Name: 386 water flows from a large tank and through a pipe of variable area as shown in fig 386 the area of the pipe is given by a a01 x1 xell2ell where a0 is the area at the beginning x 0 and e 70372
Uploaded: 2022-01-30T13:43:21-08:00
Duration: 2 min 32 s
Channel: Hast Aggarwal
Description: 386 water flows from a large tank and through a pipe of variable area as shown in fig 386 the area of the pipe is given by a a01 x1 xell2ell where a0 is the area at the beginning x 0 and e 70372

          *3.86 Water flows from a large tank and through a pipe of variable area as shown in Fig. 3.86. The area of the pipe is given by $A = A_0[1 - x(1 - x/\ell)/2\ell]$, where $A_0$ is the area at the beginning ($x = 0$) and end ($x = \ell$) of the pipe. Plot graphs of the pressure within the pipe as a function of distance along the pipe for water depths of $h = 1, 4, 10$, and $25$ m.
Free jet
$x = 0$

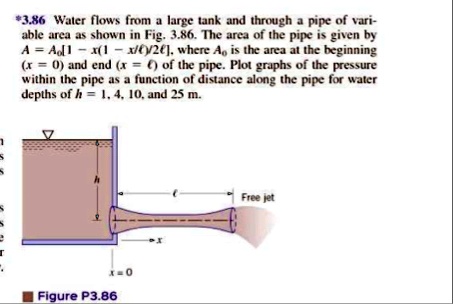

Figure P3.86

386 water flows from a large tank and through a pipe of variable area as shown in fig 386 the area of the pipe is given by a a01 x1 xell2ell where a0 is the area at the beginning x 0 and e 70372

Added by Matthew C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Hast Aggarwal

01/30/2022

Step 1

The problem involves fluid flow from a large tank through a pipe of varying area. We need to find the pressure distribution along the pipe. This suggests using Bernoulli's equation and the continuity equation. Bernoulli's equation for incompressible, steady, Show more…
