4. (20 points) The members of a truss are pin connected at joint O. Determine the magnitudes of F1 and F2 for equilibrium. Set \(\theta = 35^\circ\), and F3 = (21 + Last 2 digit of your UTPB ID) kN. (Example: if ID is 8000101234, then F3 = 21 + 34 = 55 kN) Your value: F3 = ( \quad \quad \quad ) kN

          4. (20 points) The members of a truss are pin connected at joint O. Determine the magnitudes of
F1 and F2 for equilibrium. Set \(\theta = 35^\circ\), and F3 = (21 + Last 2 digit of your UTPB ID) kN.
(Example: if ID is 8000101234, then F3 = 21 + 34 = 55 kN)
Your value:
F3 = ( \quad \quad \quad ) kN

4. (20 points) The members of a truss are pin connected at joint O. Determine the magnitudes of
F1 and F2 for equilibrium. Set θ = 35^∘, and F3 = (21 + Last 2 digit of your UTPB ID) kN.
(Example: if ID is 8000101234, then F3 = 21 + 34 = 55 kN)
Your value:
F3 = ( ) kN

Added by Adri-N A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

07/25/2023

Step 1

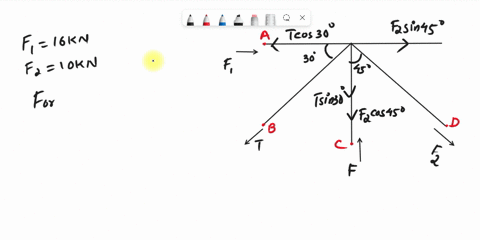

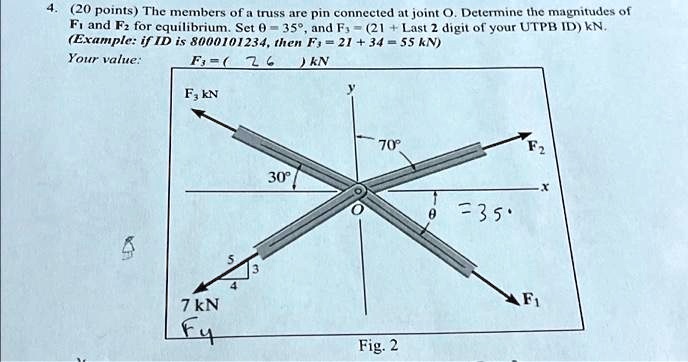

F3 kN 7 kN Fy 30° 70° Fig. 2 θ = 35° F1 F2 = 26 kN We have a pin joint at O, and there are three forces acting on it: F1, F2, and F3. F1 and F2 are unknown forces that we need to determine. Show more…

Show all steps

Thanks for your feedback!

4. (20 points) The members of a truss are pin connected at joint O. Determine the magnitudes of F1 and F2 for equilibrium. Set θ = 35°, and F3 = (21 + Last 2 digits of your UTPB ID) kN. (Example: if ID is 8000101234, then F3 = 21 + 34 = 55 kN) Your value: F3 = (26) kN F3 kN 7 kN Fy 30° 70° Fig. 2 θ = 35° F1 F2 = 26 kN
