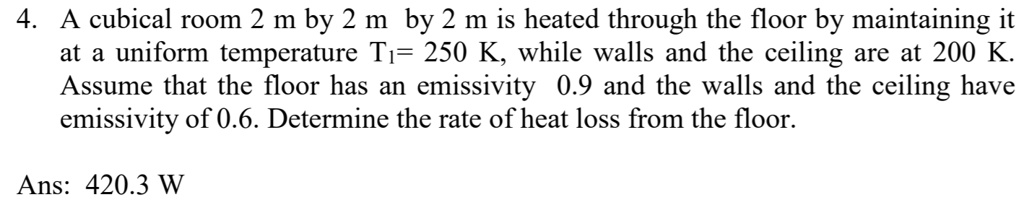

4. A cubical room 2 m by 2 m by 2 m is heated through the floor by maintaining it at a uniform temperature T1= 250 K, while walls and the ceiling are at 200 K. Assume that the floor has an emissivity 0.9 and the walls and the ceiling have emissivity of 0.6. Determine the rate of heat loss from the floor. Ans: 420.3 W
Added by Charlotte G.
Close
Step 1
We can use the Stefan-Boltzmann law for this: Q_net = A * ε * σ * (T_f^4 - T_s^4) where Q_net is the net radiation heat transfer, A is the surface area of the floor, ε is the emissivity of the floor, σ is the Stefan-Boltzmann constant, T_f is the temperature of Show more…
Show all steps
Your feedback will help us improve your experience
Penny Riley and 78 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

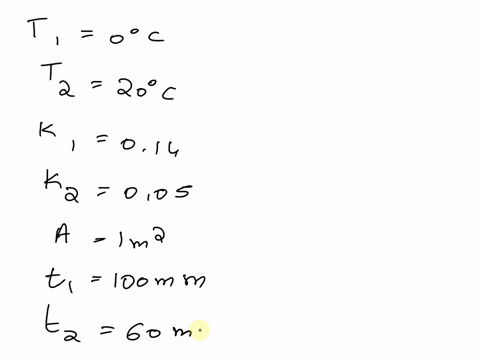

A refrigerated cold room wall has a thickness of 100 mm and a thermal conductivity of 0.14 W/m-K. The room wall has a 60 mm thick internal lining of cork having a thermal conductivity of 0.05 W/m·K. The thermal conductance between the exposed faces and the respective atmosphere is 12 W/m²·K. If the room is maintained at 0°C and the external atmospheric temperature is 20°C, calculate the heat loss rate through 1 m² of the wall.
Madhur L.

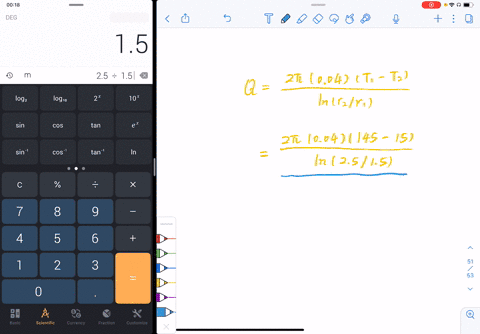

Solve the given problems. The heat loss rate $Q \text { (in } \mathrm{W} / \mathrm{m})$ through a certain cylindrical pipe insulation is given by $Q=\frac{2 \pi(0.040)\left(T_{1}-T_{2}\right)}{\ln \left(r_{2} / r_{1}\right)},$ where $T_{1}$ is the temperature inside the insulation, $T_{2}$ is the temperature outside the insulation, and $r_{1}$ and $r_{2}$ are the inside and outside radii of the insulation, respectively. Find the heat loss rate if $T_{1}=145^{\circ} \mathrm{C}, T_{2}=15.0^{\circ} \mathrm{C}, r_{1}=1.50 \mathrm{in} .,$ and $r_{2}=2.50 \mathrm{in}$.
