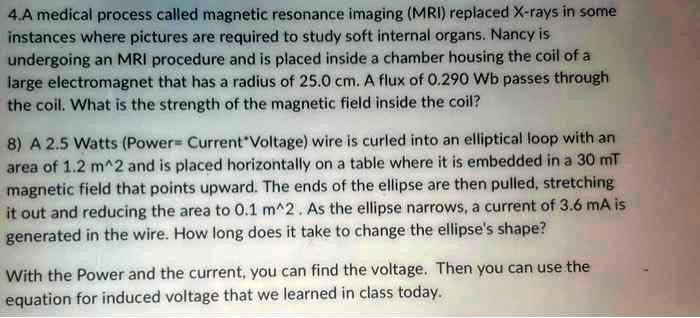

4.A medical process called magnetic resonance imaging (MRI) replaced X-rays in some instances where pictures are required to study soft internal organs. Nancy is undergoing an MRI procedure and is placed inside a chamber housing the coil of a large electromagnet that has a radius of 25.0 cm. A flux of 0.290 Wb passes through the coil. What is the strength of the magnetic field inside the coil? 8) A 2.5 Watts (Power=Current*Voltage) wire is curled into an elliptical loop with an area of 1.2 m^2 and is placed horizontally on a table where it is embedded in a 30 mT magnetic field that points upward. The ends of the ellipse are then pulled, stretching it out and reducing the area to 0.1 m^2. As the ellipse narrows, a current of 3.6 mA is generated in the wire. How long does it take to change the ellipse's shape? With the Power and the current, you can find the voltage. Then you can use the equation for induced voltage that we learned in class today.
Added by Juan Jos- C.
Close
Step 1
The magnetic flux (Φ) through a coil is given by the product of the magnetic field strength (B), the area of the coil (A), and the cosine of the angle between the magnetic field and the normal to the coil (cosθ). In this case, the magnetic field is perpendicular Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 91 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A small 10 mm diameter permanent magnet produces a field of 100 mT. The field drops away rapidly with distance and is negligible more than 1 mm from the surface. If this magnet moves at a speed of 1 m/s through a 100-turn coil of length 1 mm and diameter just larger than the magnet, what is the EMF induced?
Sri K.
Prabhu R.
In a Magnetic Resonance Imaging machine, there are several superconducting solenoid coils that provide the uniform magnetic field inside the bore. Let's look at just one of them and ask why they are made from superconducting material rather than ordinary copper wire such as used in your house. Assume that a coil is made with 2000 windings of current-carrying wire. The bore has a radius of 0.5 m, and the coil is 0.3 m long. (a) What current, in amperes, is flowing in the wire to get a magnetic field of 2.0 T at the center of the solenoid? (b) If we assume the wire is made of copper and is not a superconductor, we can calculate the resistance of the wire to carrying that much current. The resistance R (measured in units of Ohms) can be found if we know the resistivity ρ (measured in units of Ohms times meters), the cross-sectional area of the wire a, and the length of the wire L: R = ρ * L/a. Assume that the wire is 1 mm^2 and the resistivity is 16.78 × 10^-9 Ohm * m. What is the electrical resistance of the coil? (c) Ohm's law states that the voltage applied to a wire is equal to the current times the resistance: V = I * R. What voltage would be required to drive this much current through the copper wire? (d) The power required to do this is P (measured in watts) and is the current times the voltage, P = V * I. What power is required to drive this current? How many 60-watt light bulbs is this equivalent to? (e) Now assume that the magnetic coil is made of superconducting wire such as niobium-titanium. Now that the resistivity ρ = 0, what is the 1. current, 2. voltage, and 3. power used now?
